IE5072 ifm Electronic Electronic Components
Part#:IE5072
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

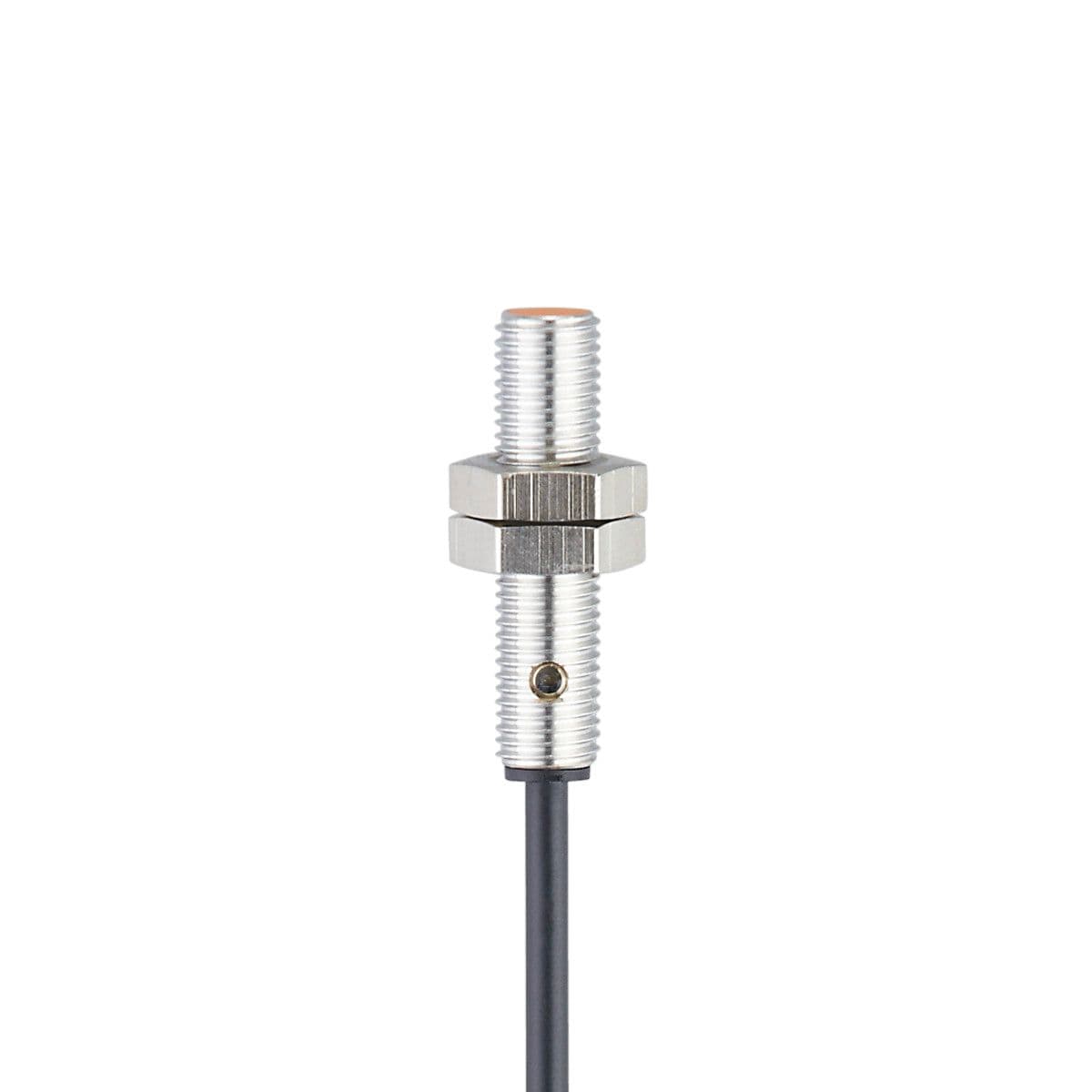

Inductive sensor, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 1, Housing: Threaded type, Dimensions [mm]: M8 x 1 / L = 35
Product Details
- Protection class III
- Output function normally open
- Sensing range [mm] 1
- Switching frequency DC [Hz] 750
- Dimensions [mm] M8 x 1 / L = 35
- Reverse polarity protection yes
- Operating voltage [V] 10...36 DC
- Overload protection yes
- Current consumption [mA] 15; (24 V)
- Max. voltage drop switching output DC [V] 2.5
- Housing Threaded type
- Electrical design PNP
- Permanent current rating of switching output DC [mA] 200
- Short-circuit protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
