II5851 ifm Electronic Electronic Components
Part#:II5851
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

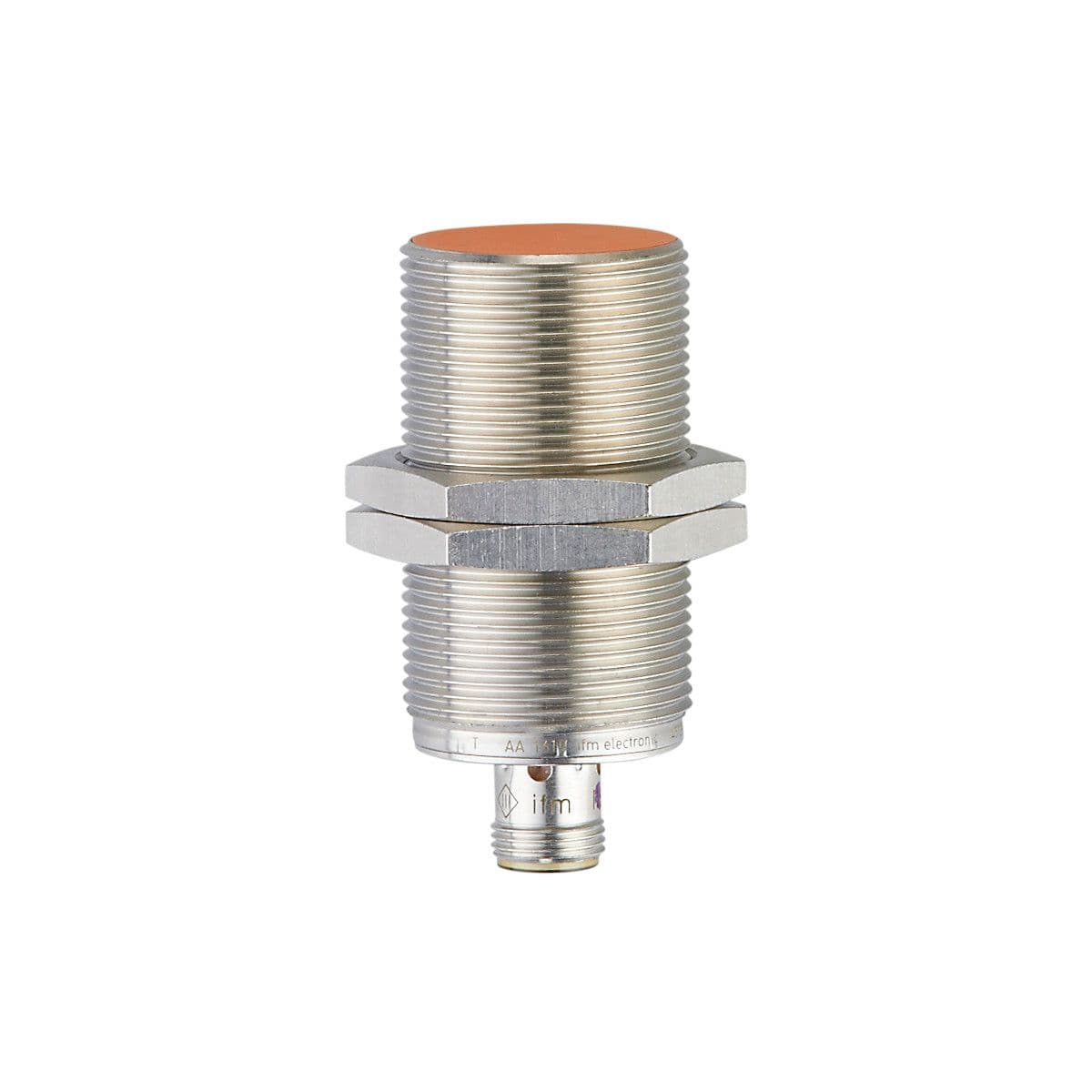

Inductive sensor, Robust metal housing for use in harsh industrial environments, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 10, Housing: Threaded type, Dimensions [mm]: M30 x 1.5 / L = 60, System: gold-plated contacts
Product Details
- Dimensions [mm] M30 x 1.5 / L = 60
- Short-circuit protection yes
- System gold-plated contacts
- Reverse polarity protection yes
- Protection class II
- Max. voltage drop switching output DC [V] 2.5
- Sensing range [mm] 10
- Switching frequency DC [Hz] 400
- Housing Threaded type
- Current consumption [mA] < 10
- Short-time current rating of switching output [mA] 200
- Overload protection yes
- Operating voltage [V] 10...30 DC
- Output function normally open
- Permanent current rating of switching output DC [mA] 200
- Electrical design PNP
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
II5851 ifm Electronic
