IIS241 ifm Electronic Electronic Components
Part#:IIS241
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

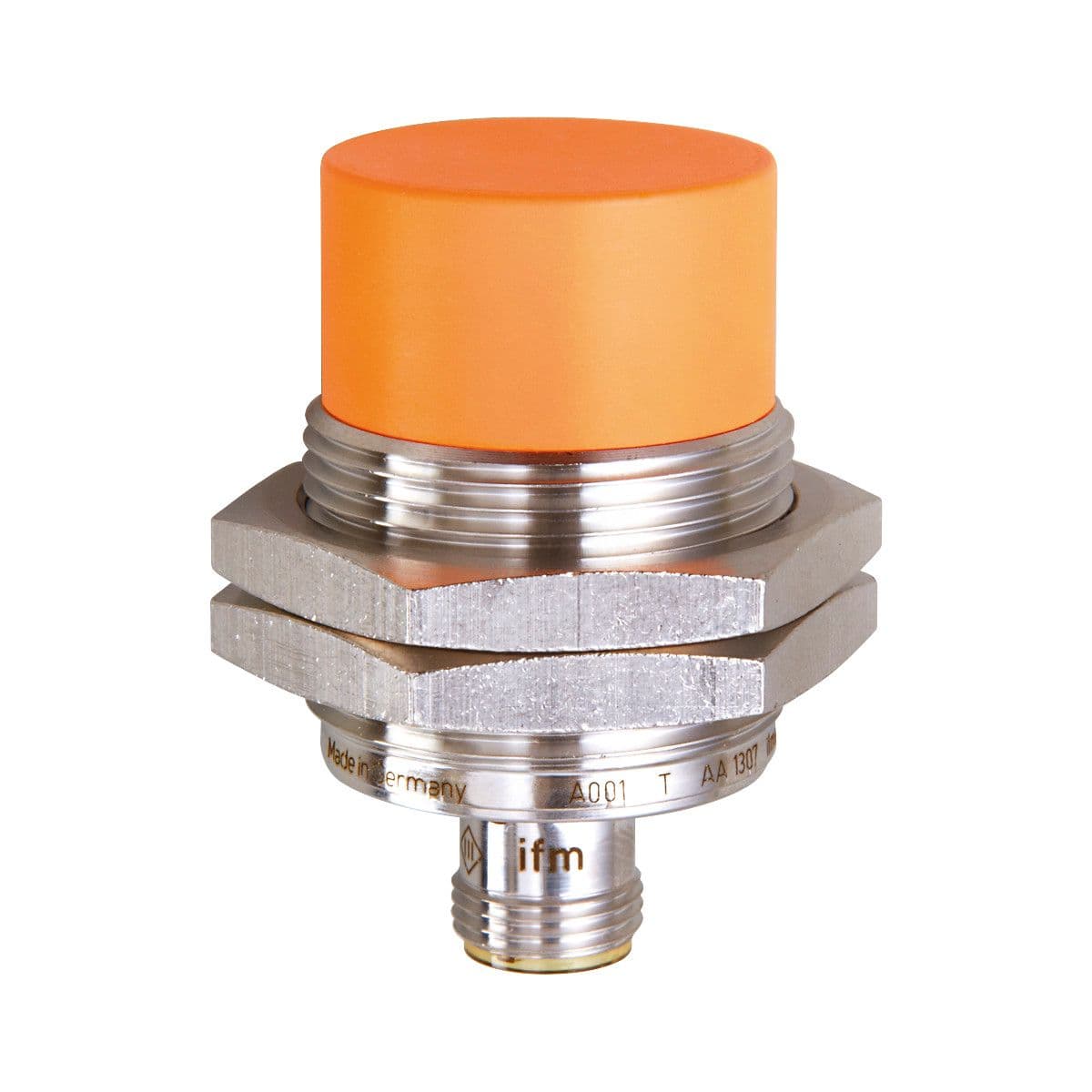

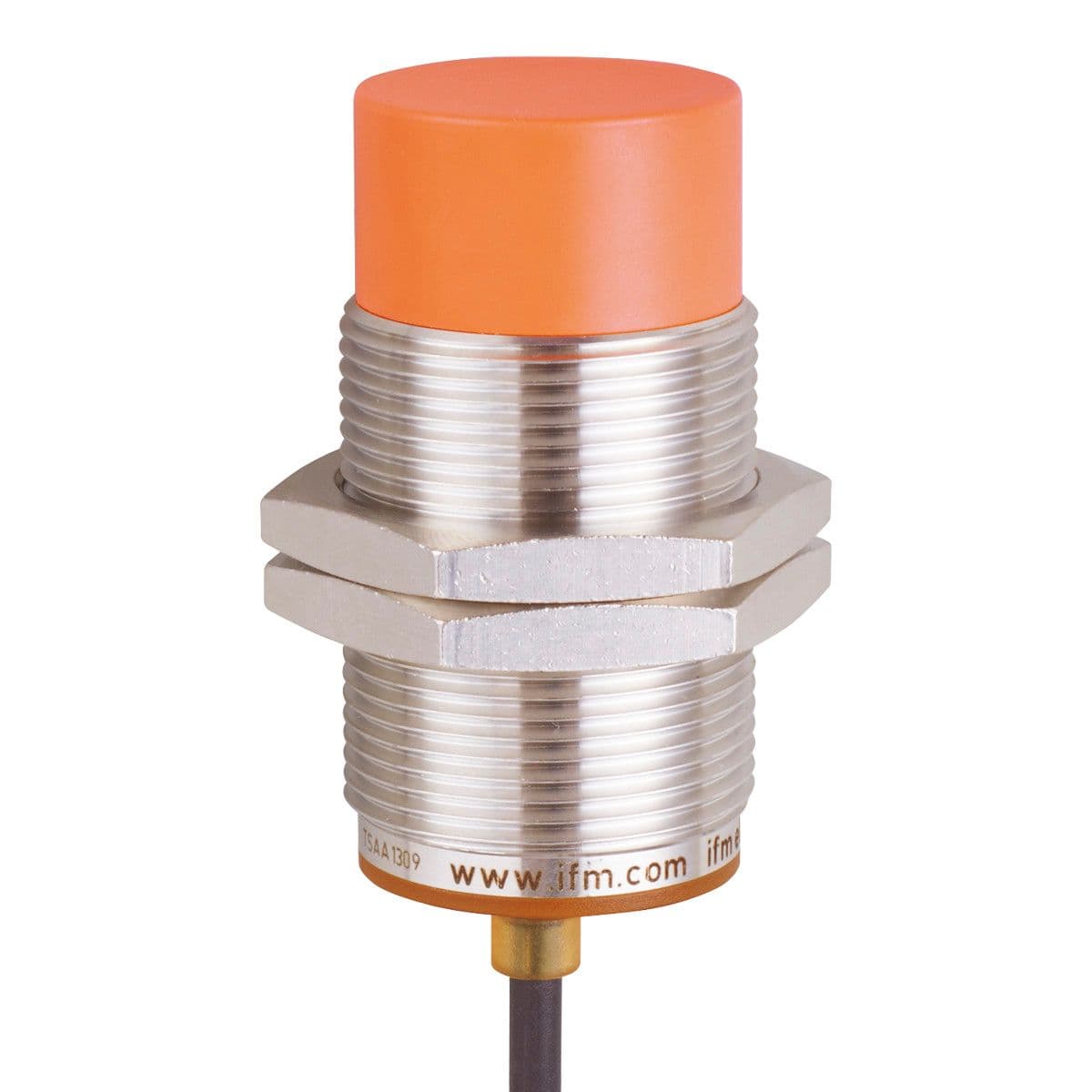

Inductive sensor, Suitable for industrial, mobile, cooling and lubricating applications, Electrical design: NPN, Output function: normally open, Sensing range [mm]: 22, Housing: Threaded type, Dimensions [mm]: M30 x 1.5 / L = 60, System: Increased sensing
Product Details
- Permanent current rating of switching output DC [mA] 100
- Dimensions [mm] M30 x 1.5 / L = 60
- Current consumption [mA] < 10
- Overload protection yes
- Protection class III
- Output function normally open
- Sensing range [mm] 22
- Housing Threaded type
- System Increased sensing range
- Max. voltage drop switching output DC [V] 2.5
- Application Industrial applications
- Switching frequency DC [Hz] 100
- Operating voltage [V] 10...30 DC
- Reverse polarity protection yes
- Electrical design NPN
- Short-circuit protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
