IM0050 ifm Electronic Electronic Components

Name: IM0050
Brand: ifm Electronic

Part#:IM0050

Category:Electronic Components

Product Lifecycle:Active

Product description

Inductive sensor, Long sensing range for use in conveying, Output function: normally open, Sensing range [mm]: 20, Housing: rectangular, Dimensions [mm]: 40 x 40 x 66

Product Details

Permanent current rating of switching output DC [mA]
100
Overload protection
no
Permanent current rating of switching output AC [mA]
250; (350 (...50 °C))
Switching frequency AC [Hz]
25
Short-circuit proof
no
Switching frequency DC [Hz]
140
Minimum load current [mA]
1.9
Max. voltage drop switching output AC [V]
6.5
Short-time current rating of switching output [mA]
2200; (20 ms / 0,5 Hz)
Max. leakage current [mA]
2.5 (250 V AC) / 1.3 (130 V AC) / 0.8 (24 V DC)
Reverse polarity protection
no
Max. voltage drop switching output DC [V]
6
Operating voltage [V]
20...250 AC/DC
Protection class
I
Dimensions [mm]
40 x 40 x 66
Sensing range [mm]
20
Housing
rectangular
Output function
normally open

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IM0050 Related Documents

CAD_DWG_100_0383.ZIP-1631071875290.zip CAD_STP_100_0383.ZIP-1631071875292.zip PDF data sheet-1631071875298.pdf CAD_SAT_100_0383.ZIP-1631071875294.zip CAD_DXF_100_0383.ZIP-1631071875296.zip

Manufacturer warranty

IM0050 ifm Electronic

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare IM0050 with other Electronic Components products

Permanent current rating ...

Overload protection

Permanent current rating ...

Switching frequency AC [H...

Short-circuit proof

Switching frequency DC [H...

Minimum load current [mA]

Max. voltage drop switchi...

Short-time current rating...

Max. leakage current [mA]

Selected product

Backordered

ifm Electronic

Inductive sensor, Long sensing range for use in conveying, Output function: normally open, Sensing r...

Permanent current rating of switching output DC [mA]100

Overload protectionno

Permanent current rating of switching output AC [mA]250; (350 (...50 °C))

Switching frequency AC [Hz]25

Short-circuit proofno

Switching frequency DC [Hz]140

Minimum load current [mA]1.9

Max. voltage drop switching output AC [V]6.5

Short-time current rating of switching output [mA]2200; (20 ms / 0,5 Hz)

Max. leakage current [mA]2.5 (250 V AC) / 1.3 (130 V ...

7 in stock

Mencom

Standard, CQ series, Female Rectangular Insert, size 21.21, 5 pin, 16 amp, Crimp

Permanent current rating of switching output DC [mA]-

Overload protection-

Permanent current rating of switching output AC [mA]-

Switching frequency AC [Hz]-

Short-circuit proof-

Switching frequency DC [Hz]-

Minimum load current [mA]-

Max. voltage drop switching output AC [V]-

Short-time current rating of switching output [mA]-

Max. leakage current [mA]-

40 in stock

Mencom

Ethernet, Field Wireable, 4 Pole, M12 D-Coded Male Right Angle, PG07 3-6.5mm

Permanent current rating of switching output DC [mA]-

Overload protection-

Permanent current rating of switching output AC [mA]-

Switching frequency AC [Hz]-

Short-circuit proof-

Switching frequency DC [Hz]-

Minimum load current [mA]-

Max. voltage drop switching output AC [V]-

Short-time current rating of switching output [mA]-

Max. leakage current [mA]-

93 in stock

Panduit

Pan-Term Butt Splice

Permanent current rating of switching output DC [mA]-

Overload protection-

Permanent current rating of switching output AC [mA]-

Switching frequency AC [Hz]-

Short-circuit proof-

Switching frequency DC [Hz]-

Minimum load current [mA]-

Max. voltage drop switching output AC [V]-

Short-time current rating of switching output [mA]-

Max. leakage current [mA]-

7 in stock

Mencom

Standard, CQ series, Female Rectangular Insert, size 21.21, 5 pin, 16 amp, Crimp

Permanent current rating of switching output DC [mA]-

Overload protection-

Permanent current rating of switching output AC [mA]-

Switching frequency AC [Hz]-

Short-circuit proof-

Switching frequency DC [Hz]-

Minimum load current [mA]-

Max. voltage drop switching output AC [V]-

Short-time current rating of switching output [mA]-

Max. leakage current [mA]-

40 in stock

Mencom

Ethernet, Field Wireable, 4 Pole, M12 D-Coded Male Right Angle, PG07 3-6.5mm

Permanent current rating of switching output DC [mA]-

Overload protection-

Permanent current rating of switching output AC [mA]-

Switching frequency AC [Hz]-

Short-circuit proof-

Switching frequency DC [Hz]-

Minimum load current [mA]-

Max. voltage drop switching output AC [V]-

Short-time current rating of switching output [mA]-

Max. leakage current [mA]-

93 in stock

Panduit

Pan-Term Butt Splice

Permanent current rating of switching output DC [mA]-

Overload protection-

Permanent current rating of switching output AC [mA]-

Switching frequency AC [Hz]-

Short-circuit proof-

Switching frequency DC [Hz]-

Minimum load current [mA]-

Max. voltage drop switching output AC [V]-

Short-time current rating of switching output [mA]-

Max. leakage current [mA]-

7 in stock

Mencom

Standard, CQ series, Female Rectangular Insert, size 21.21, 5 pin, 16 amp, Crimp

Permanent current rating of switching output DC [mA]-

Overload protection-

Permanent current rating of switching output AC [mA]-

Switching frequency AC [Hz]-

Short-circuit proof-

Switching frequency DC [Hz]-

Minimum load current [mA]-

Max. voltage drop switching output AC [V]-

Short-time current rating of switching output [mA]-

Max. leakage current [mA]-

40 in stock

Mencom

Ethernet, Field Wireable, 4 Pole, M12 D-Coded Male Right Angle, PG07 3-6.5mm

Permanent current rating of switching output DC [mA]-

Overload protection-

Permanent current rating of switching output AC [mA]-

Switching frequency AC [Hz]-

Short-circuit proof-

Switching frequency DC [Hz]-

Minimum load current [mA]-

Max. voltage drop switching output AC [V]-

Short-time current rating of switching output [mA]-

Max. leakage current [mA]-

About the manufacturer

Advantage Electric Supply is an authorized ifm Electronic distributor, bringing you innovative industrial automation solutions from a trusted manufacturer. ifm Electronic specializes in developing cutting-edge sensors and control systems that are vital for optimizing industrial processes across a wide spectrum of industries, including automotive, food and beverage, chemical, and more. Their compre...

Relevant products

IM0010

Verified stock: 0

ifm Electronic - IM0010

ifm Electronic

IM0055

Verified stock: 0

Inductive sensor, Long sensing range for use in conveying, Output function: normally open, Sensing range [mm]: 20, Housing: rectangular, Dimensions [mm]: 40 x 40 x 66

ifm Electronic

IM0042

Verified stock: 0

Inductive sensor, Long sensing range for use in conveying, Output function: normally open, Sensing range [mm]: 35, Housing: rectangular, System: Increased sensing range

ifm Electronic

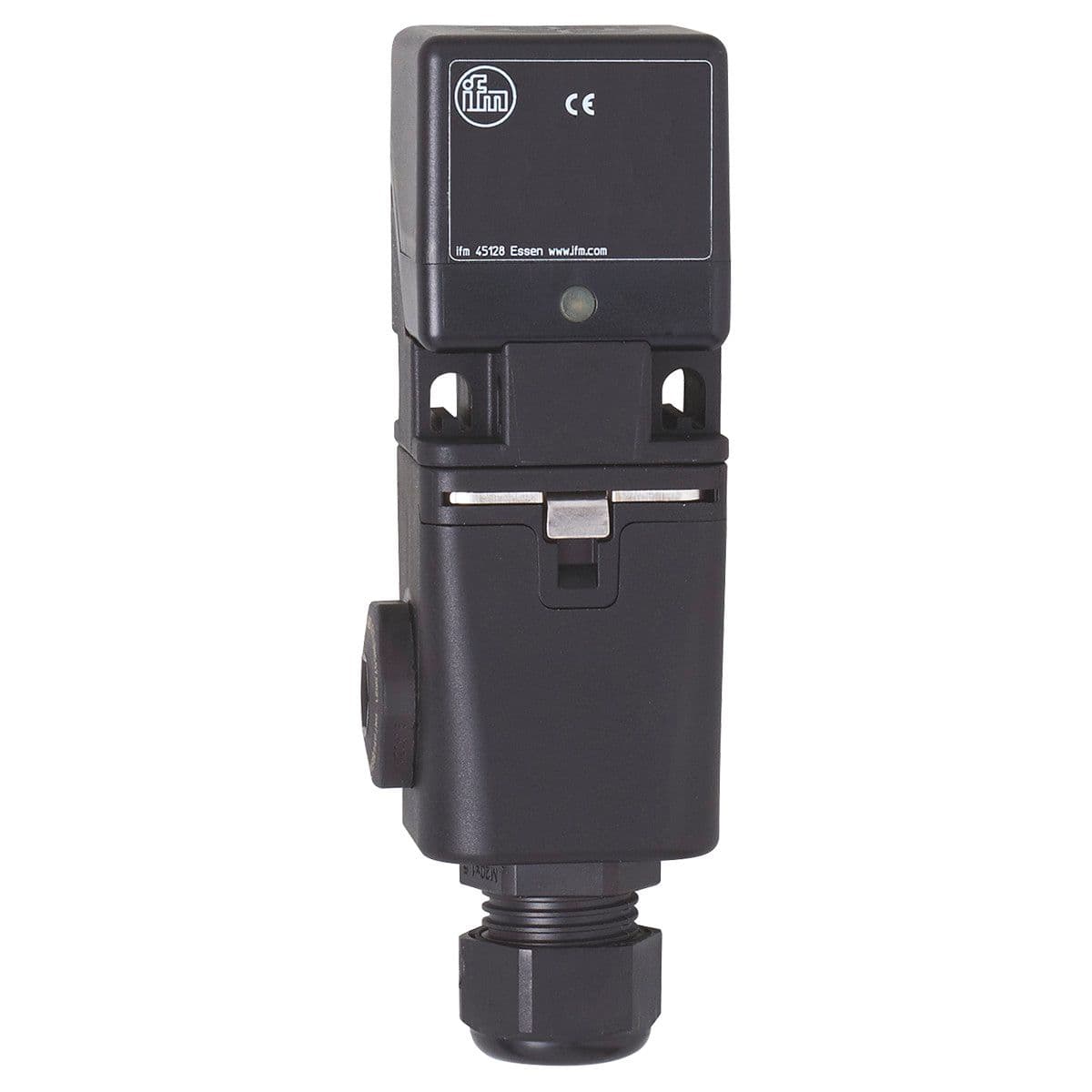

IM002A
