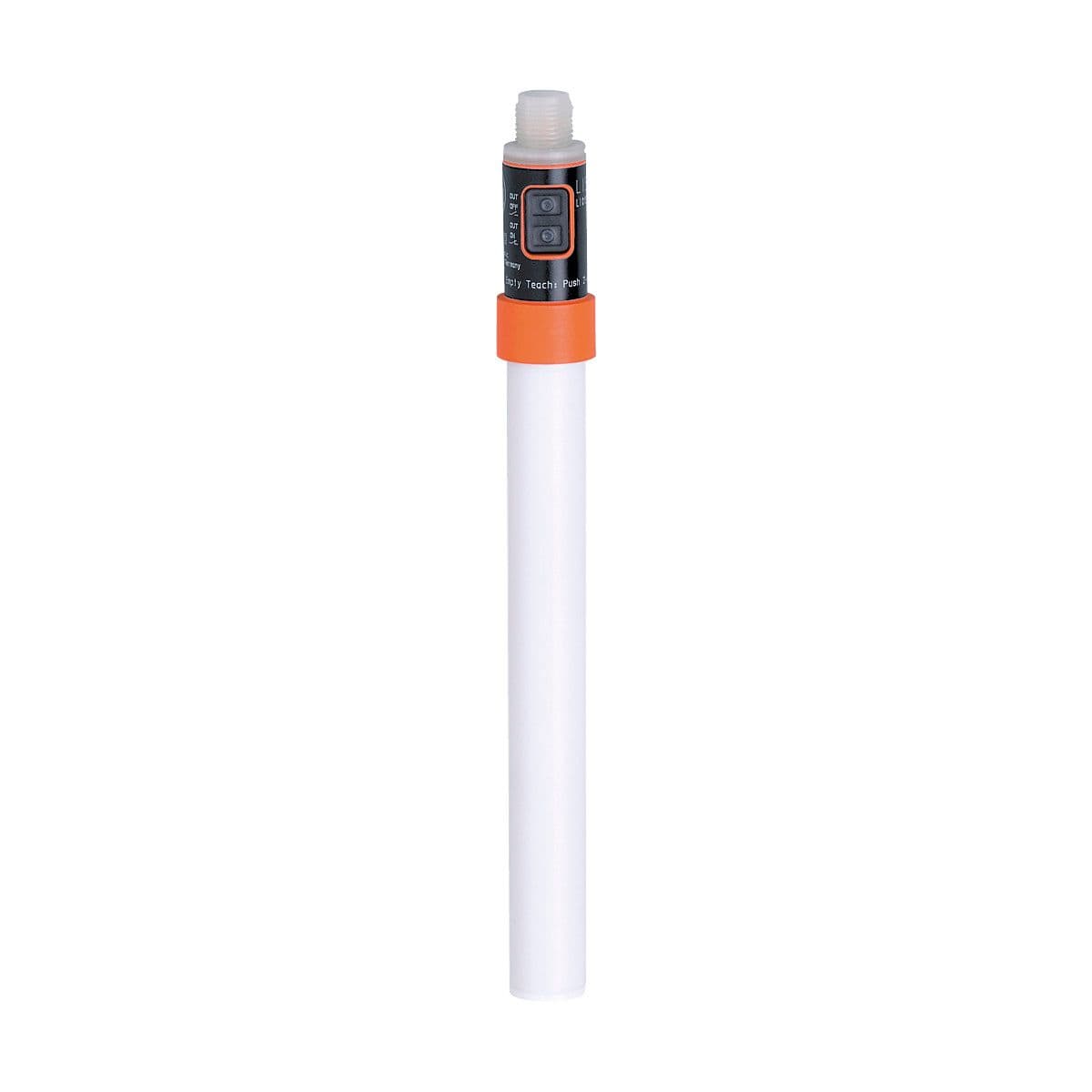

LI2141 ifm Electronic Electronic Components
Part#:LI2141
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Level sensor for limit detection with overspill protection (German Federal Water Act), For the reliable point level monitoring in tanks and containers, Number of inputs and outputs: Number of digital outputs: 1, Probe length L [mm]: 132, System: gold-plat
Product Details
- Probe length L [mm] 132
- Current consumption [mA] 22; (24 V)
- Number of digital outputs 1
- Type of short-circuit protection yes (non-latching)
- Cannot be used for granulates; bulk material; acids; alkali
- Media hydrous coolants; oils; water; media similar to water
- Output function normally closed
- Tank pressure [bar] -0.5...0.5; (when mounting with mounting accessories: E43001 - E43007, E43019)
- Medium temperature [°C] 0...35
- Permanent current rating of switching output DC [mA] 200
- Recommended media hydrous coolants; oils; water; media similar to water
- Reverse polarity protection yes
- Electrical design PNP
- System gold-plated contacts
- Total number of outputs 1
- Short-circuit protection yes
- Output signal switching signal
- Number of inputs and outputs Number of digital outputs: 1
- Overload protection yes
- Dielectric constant of the medium > 1,8
- Operating voltage [V] 10...36 DC
- Protection class III
- Max. voltage drop switching output DC [V] 2.5
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
