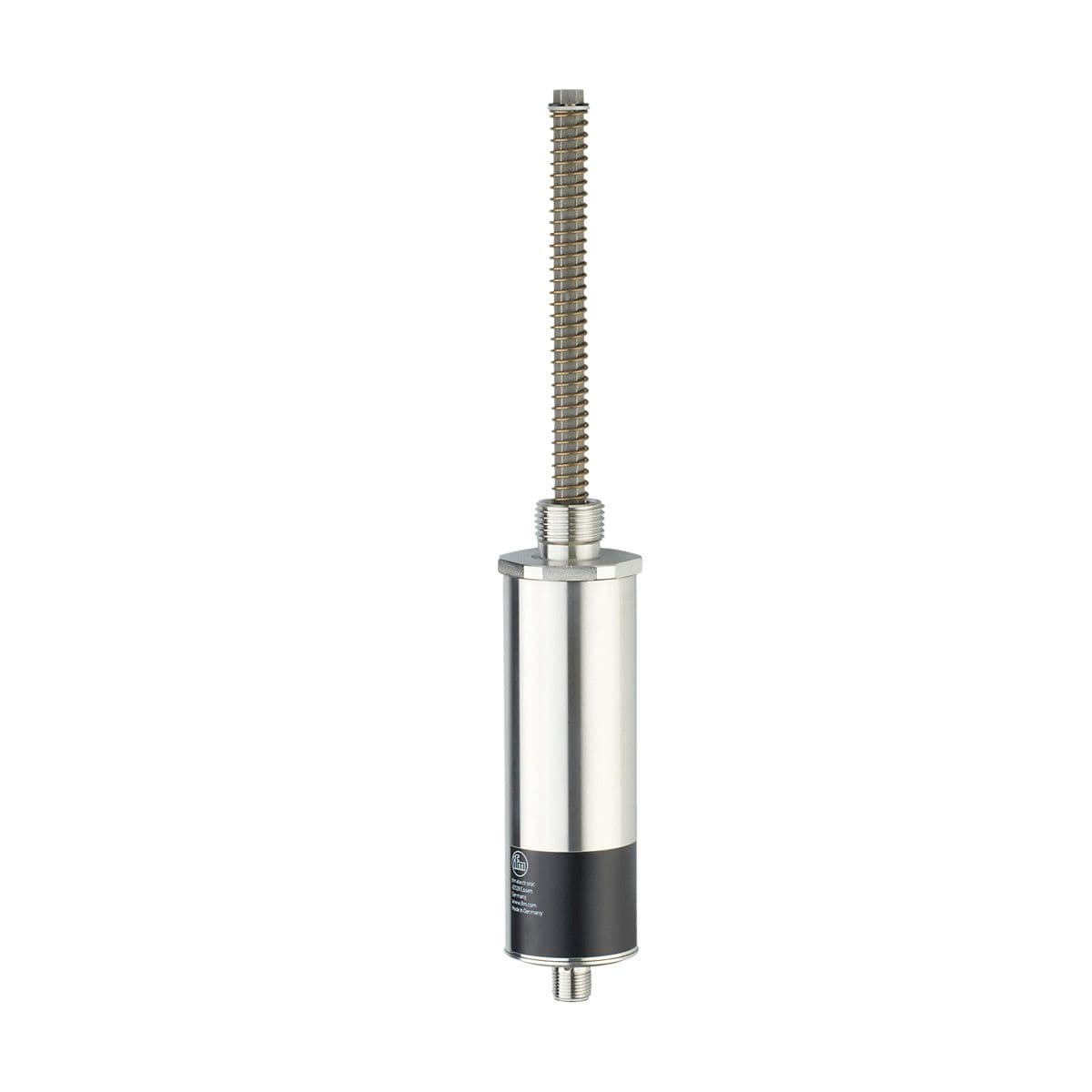

M95009 ifm Electronic Electronic Components
Part#:M95009
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Magnetic sensor with two switch points for brake diagnosis, For the reliable detection of the locked state of rotors, Output function: 2 x normally closed, 1 x normally open, Dimensions [mm]: Ø 40, System: gold-plated contacts
Product Details
- Max. voltage drop switching output DC [V] 5.4
- Protection class III
- Max. leakage current [mA] 0.5
- Minimum load current [mA] 2
- Dimensions [mm] Ø 40
- System gold-plated contacts
- Operating voltage [V] 10...36 DC; (cULus - Class 2 source required)
- Switching frequency DC [Hz] 0.5
- Reverse polarity protection yes
- Short-circuit protection yes
- Output function 2 x normally closed, 1 x normally open
- Permanent current rating of switching output DC [mA] 100
- Overload protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
