MN200S ifm Electronic Electronic Components
Part#:MN200S
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

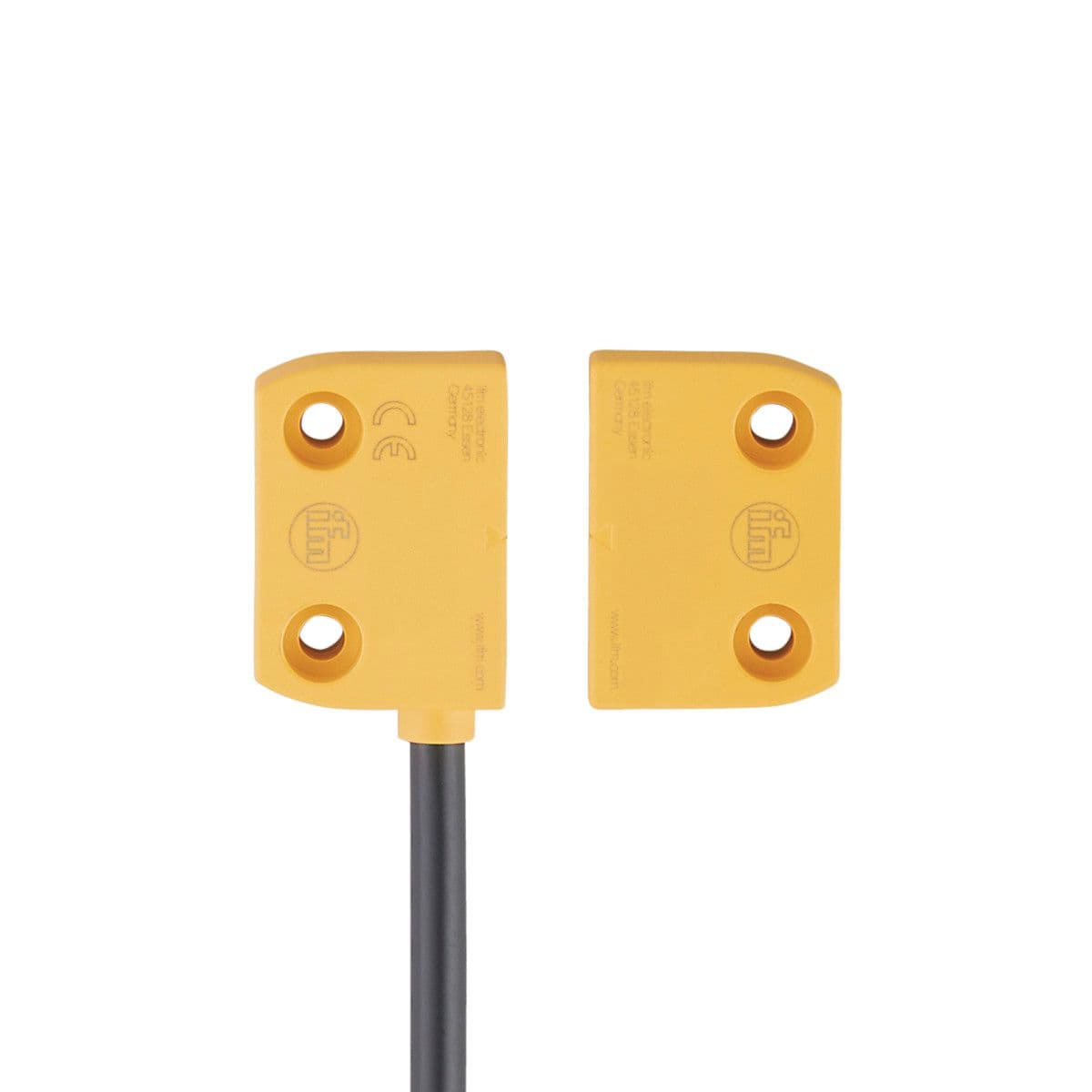

Magnetically coded sensor, Actuation possible from different directions, Output function: 2 x normally open; (potential-free), Sensing range [mm]: 5; (with defined actuator), Housing: rectangular, Dimensions [mm]: 36 x 13 x 26, Design: coded target, Type
Product Details
- Design coded target
- Short-circuit proof no
- Sensing range [mm] 5; (with defined actuator)
- Housing rectangular
- Rated insulation voltage [V] 60
- Type of operation permanent operation
- Operating voltage [V] 24 DC
- Protection class III
- Dimensions [mm] 36 x 13 x 26
- Reverse polarity protection no
- Output data Interface type A
- Switching frequency DC [Hz] 150
- Permanent current rating of switching output DC [mA] 50
- Output function 2 x normally open; (potential-free)
- Internal resistance (Ri) [Ω] 10; (1 W)
- Max. capacitive load CL_max [nF] 20
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
MN200S ifm Electronic
