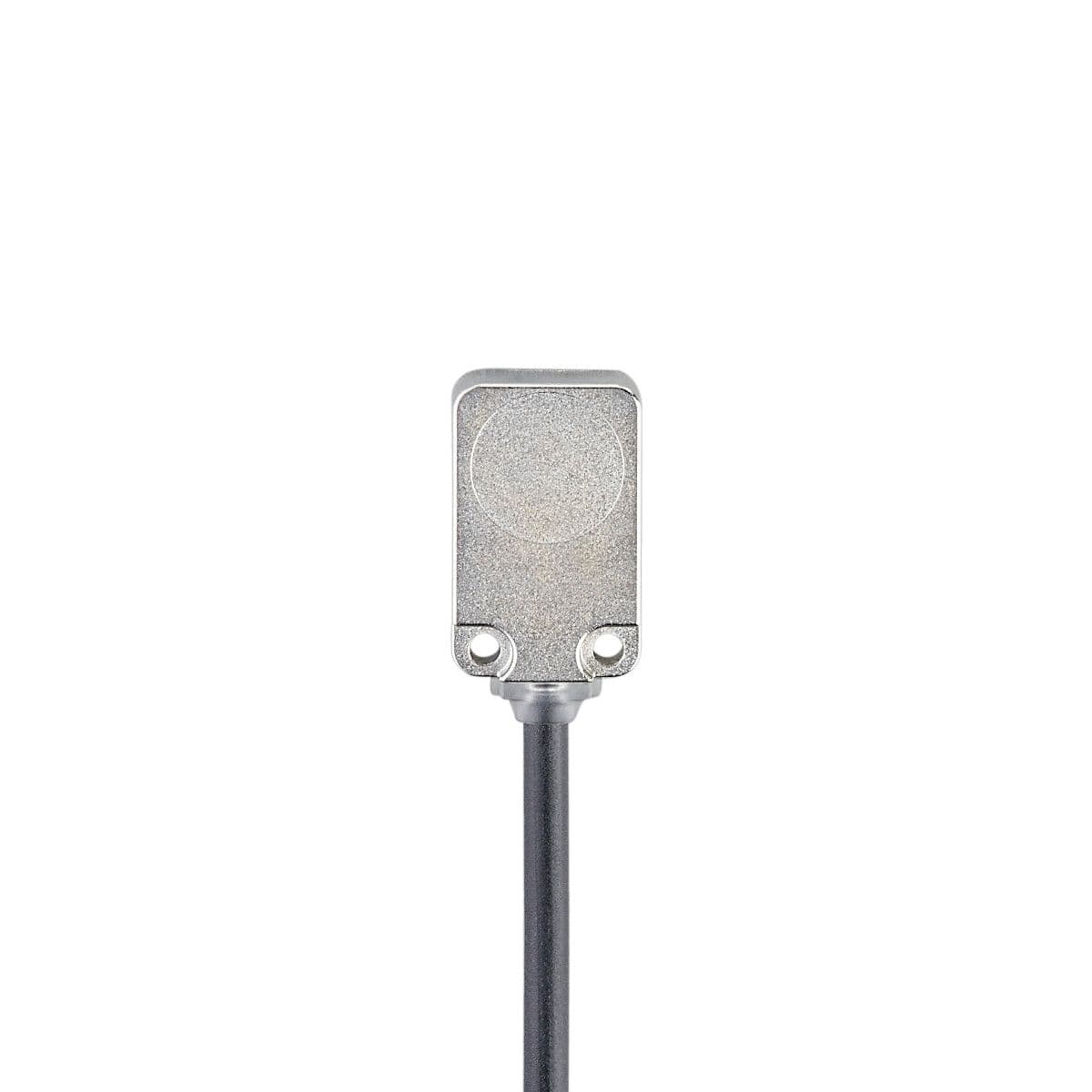

MQ2000 ifm Electronic Electronic Components
Part#:MQ2000
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Magnetic sensor, Object detection possible through metal cover (except steel), Electrical design: PNP, Output function: normally open, Sensing range [mm]: 5, Housing: rectangular, Dimensions [mm]: 20 x 8 x 32, Media: Ferrous only
Product Details
- Media Ferrous only
- Switching frequency DC [Hz] 300
- Sensing range [mm] 5
- Max. leakage current [mA] 0.1
- Protection class III
- Electrical design PNP
- Permanent current rating of switching output DC [mA] 100
- Housing rectangular
- Max. voltage drop switching output DC [V] 2.5
- Operating voltage [V] 10...30 DC
- Type of short-circuit protection yes (non-latching)
- Rated insulation voltage [V] 60
- Short-time current rating of switching output [mA] 100
- Reverse polarity protection yes
- Output function normally open
- Overload protection yes
- Dimensions [mm] 20 x 8 x 32
- Power-on delay time [s] < 0.3
- Current consumption [mA] < 30
- Short-circuit protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
MQ2000 ifm Electronic
