OGE080 ifm Electronic Electronic Components
Part#:OGE080
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

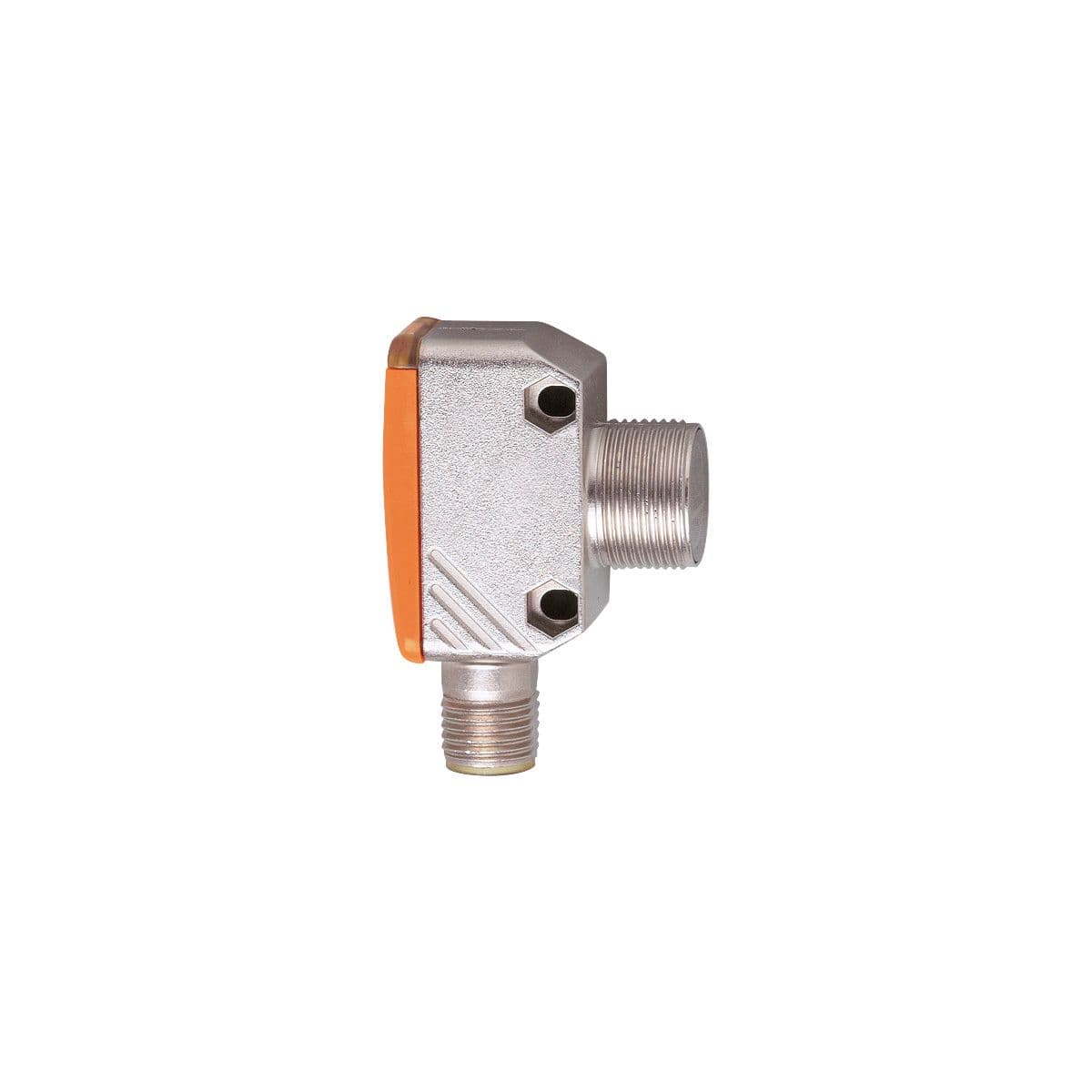

Through-beam sensor receiver, Robust rectangular metal housing with M18 thread on the side, Type of light: red light, Housing: rectangular, Dimensions [mm]: M18 x 1, Function principle: Through-beam sensor
Product Details
- Housing rectangular
- Short-circuit protection no
- Type of light red light
- Wave length [nm] 633
- Short-time current rating of switching output [mA] 1200; (20 ms / 0,5 Hz)
- Operating voltage [V] 20...250 AC
- Permanent current rating of switching output AC [mA] 150; (200 (...40 °C))
- Dimensions [mm] M18 x 1
- Output function dark-on mode
- Frequency AC [Hz] 47...63
- Max. leakage current [mA] 1.7
- Protection class II; (double insulated)
- Switching frequency AC [Hz] 30
- Minimum load current [mA] 5
- Function principle Through-beam sensor
- Overload protection no
- Max. voltage drop switching output AC [V] 8
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
