OY122S ifm Electronic Electronic Components
Part#:OY122S
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

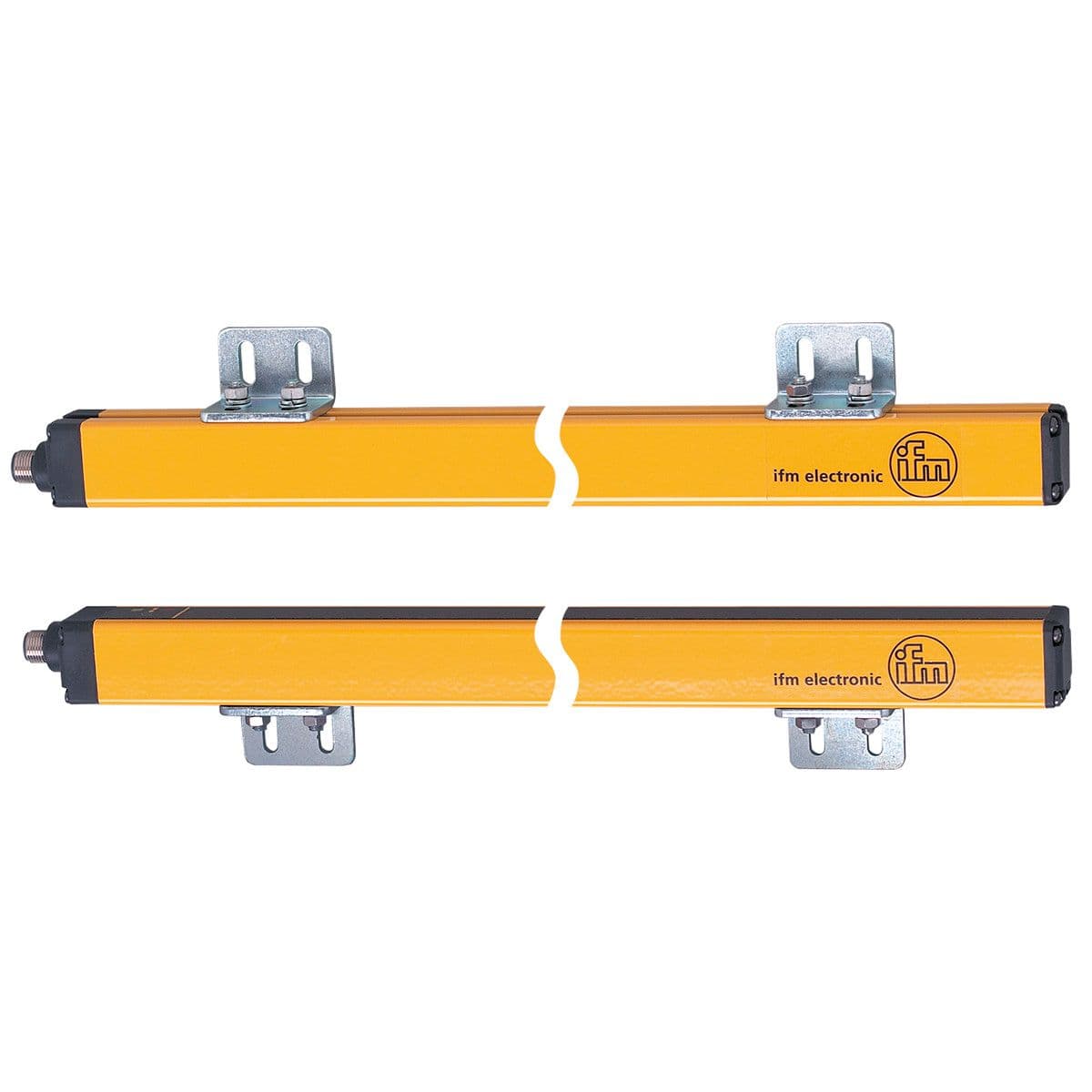

Safety light grid, Reliable protection of hazardous areas, Type of light: Infrared light, Dimensions [mm]: 1053 x 28 x 30, Protective function: Access prevention body protection
Product Details
- Type of light Infrared light
- Protection class III
- Short-circuit protection yes
- Operating voltage [V] 24 DC
- Max. current load per OSSD output [mA] 400; (24 V)
- Protective function Access prevention body protection
- Wave length [nm] 950
- Operating voltage tolerance [%] 20
- Current consumption [mA] 42
- Power-on delay time [s] < 2
- Dimensions [mm] 1053 x 28 x 30
- Number of OSSD outputs 2
- Reverse polarity protection yes
- Electrical design PNP
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
OY122S ifm Electronic
