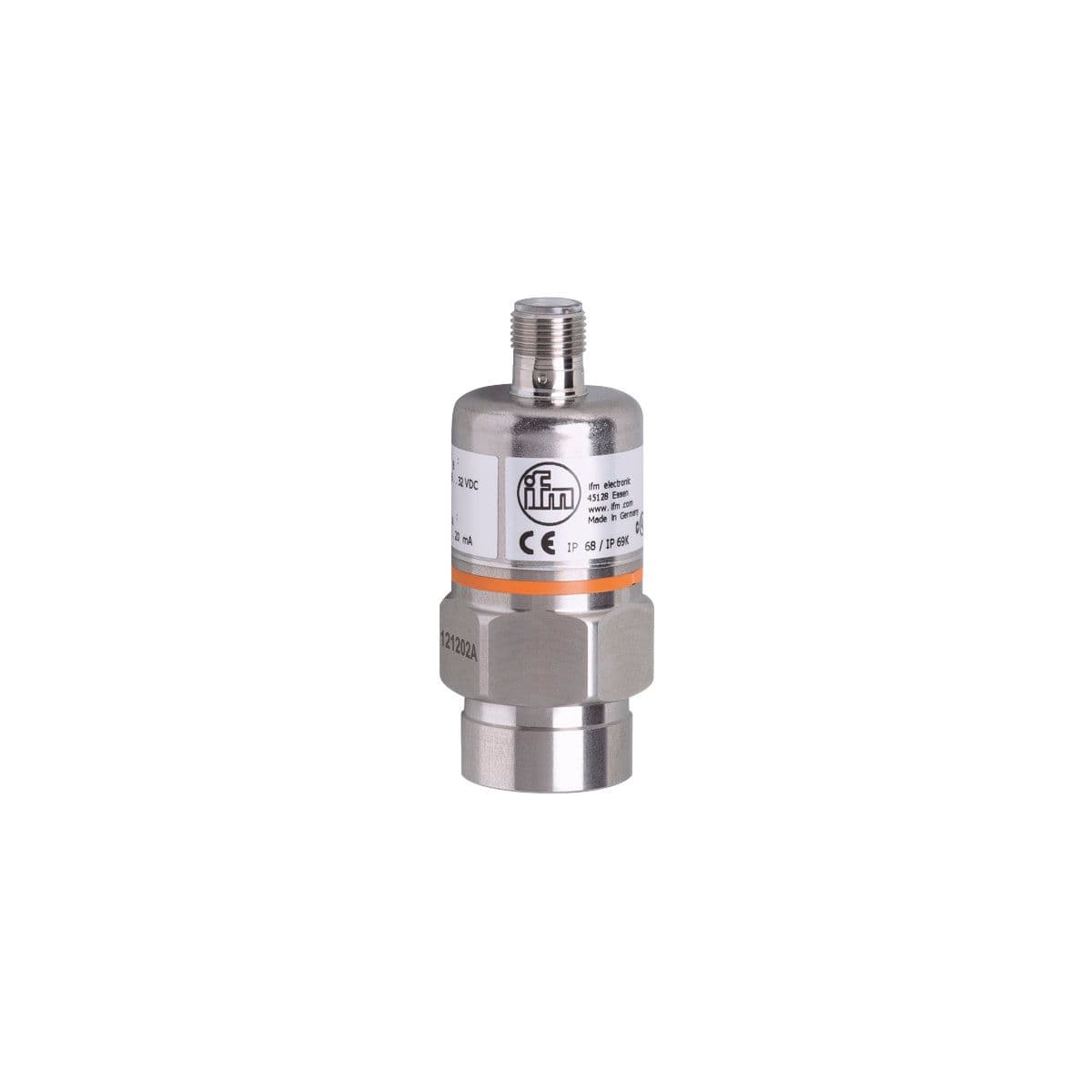

PA9026 ifm Electronic Electronic Components

Name: PA9026
Brand: ifm Electronic

Part#:PA9026

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

Pressure transmitter with ceramic measuring cell, Precise linear 0...10 V output signal, Output signal: analog signal, Measuring range: 0...2.5 bar 0...2500 mbar 0...36 psi 0...250 kPa, Process connection: threaded connection G 1/4 Internal thread, System

Product Details

Process connection
threaded connection G 1/4 Internal thread
Output signal
analog signal
Analog voltage output [V]
0...10
Measuring range
0...2.5 bar 0...2500 mbar 0...36 psi 0...250 kPa
Pressure rating
20 bar 290 psi 2 Mpa
Min. insulation resistance [MΩ]
100; (500 V DC)
Application
for industrial applications
Protection class
III
Number of analog outputs
1
Medium temperature [°C]
-25...90; (on request: -40...90 °C)
Number of inputs and outputs
Number of analog outputs: 1
Overload protection
yes
Reverse polarity protection
yes
Total number of outputs
1
Min. bursting pressure
50 bar 725 psi 5 MPa
Media
liquids and gases
Type of pressure
relative pressure
System
gold-plated contacts
Operating voltage [V]
16...32 DC
Min. load resistance [Ω]
2000

Current consumption [mA]

< 18

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PA9026 Related Documents

PDF data sheet-1631072592975.pdf CAD_DWG_500_0064.ZIP-1631072592984.zip CAD_DXF_500_0064.ZIP-1631072592990.zip CAD_SAT_500_0064.ZIP-1631072592982.zip CAD_STP_500_0064.ZIP-1631072592978.zip
