PK7520 ifm Electronic Electronic Components
Part#:PK7520
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

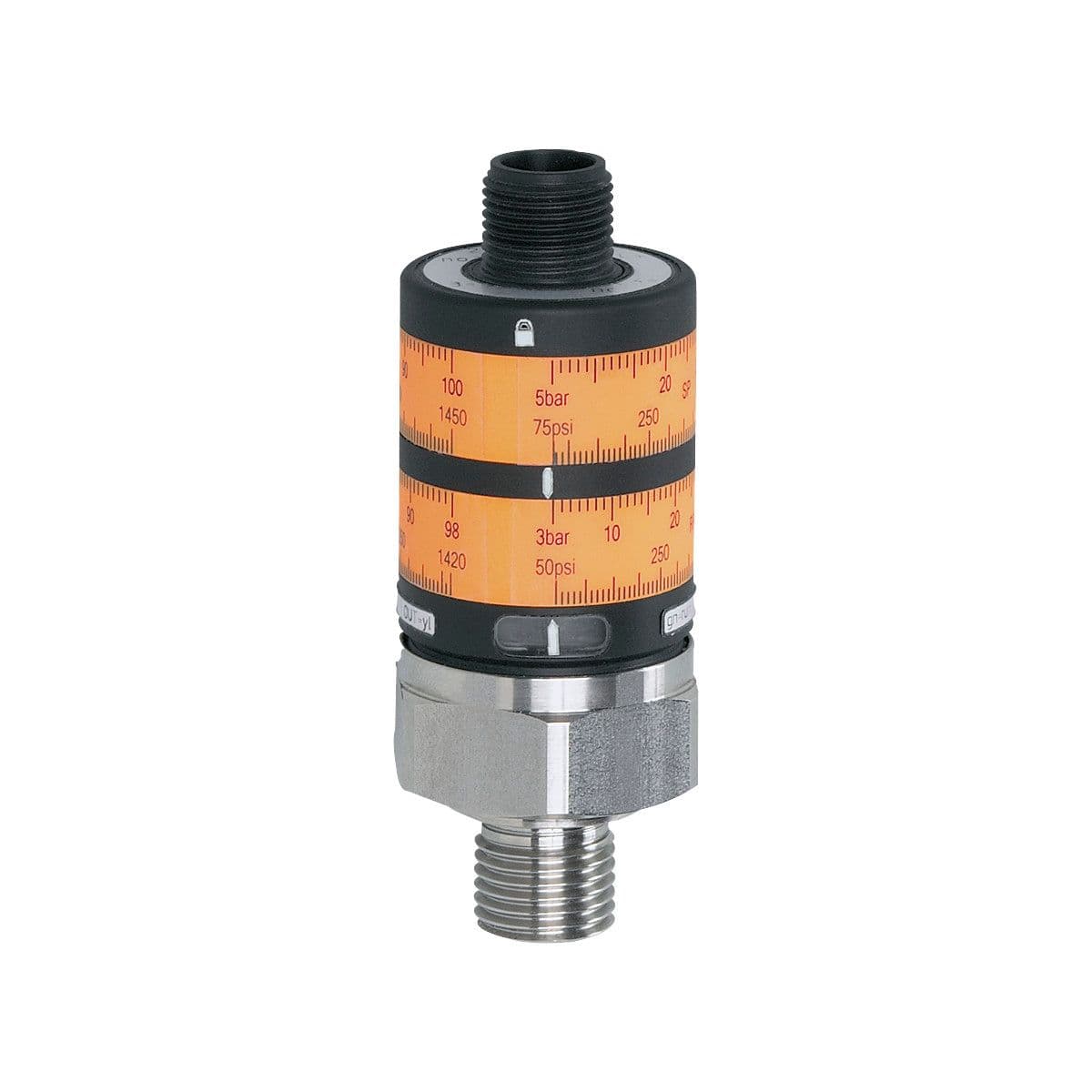

Pressure switch with intuitive switch point setting, Simple switch point setting by means of two setting rings allowing optimum reading, Output signal: switching signal, Measuring range: 0...400 bar 0...5800 psi, Process connection: threaded connection G
Product Details
- Medium temperature [°C] -25...80
- Protection class III
- Type of pressure relative pressure
- Reverse polarity protection yes
- Output function normally open
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Overload protection yes
- Measuring range 0...400 bar 0...5800 psi
- Pressure rating 600 bar 8700 psi
- Operating voltage [V] 9.6...32 DC
- Short-circuit protection yes
- Current consumption [mA] < 25
- Type of short-circuit protection yes (non-latching)
- Media liquids and gases
- Application for industrial applications
- Number of digital outputs 2
- Electrical design PNP
- Output signal switching signal
- Process connection threaded connection G 1/4 external thread Internal thread:M5
- Total number of outputs 2
- Max. voltage drop switching output DC [V] 2
- Switching frequency DC [Hz] 100
- Permanent current rating of switching output DC [mA] 500
- Min. bursting pressure 1600 bar 23200 psi
- Number of inputs and outputs Number of digital outputs: 2
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
