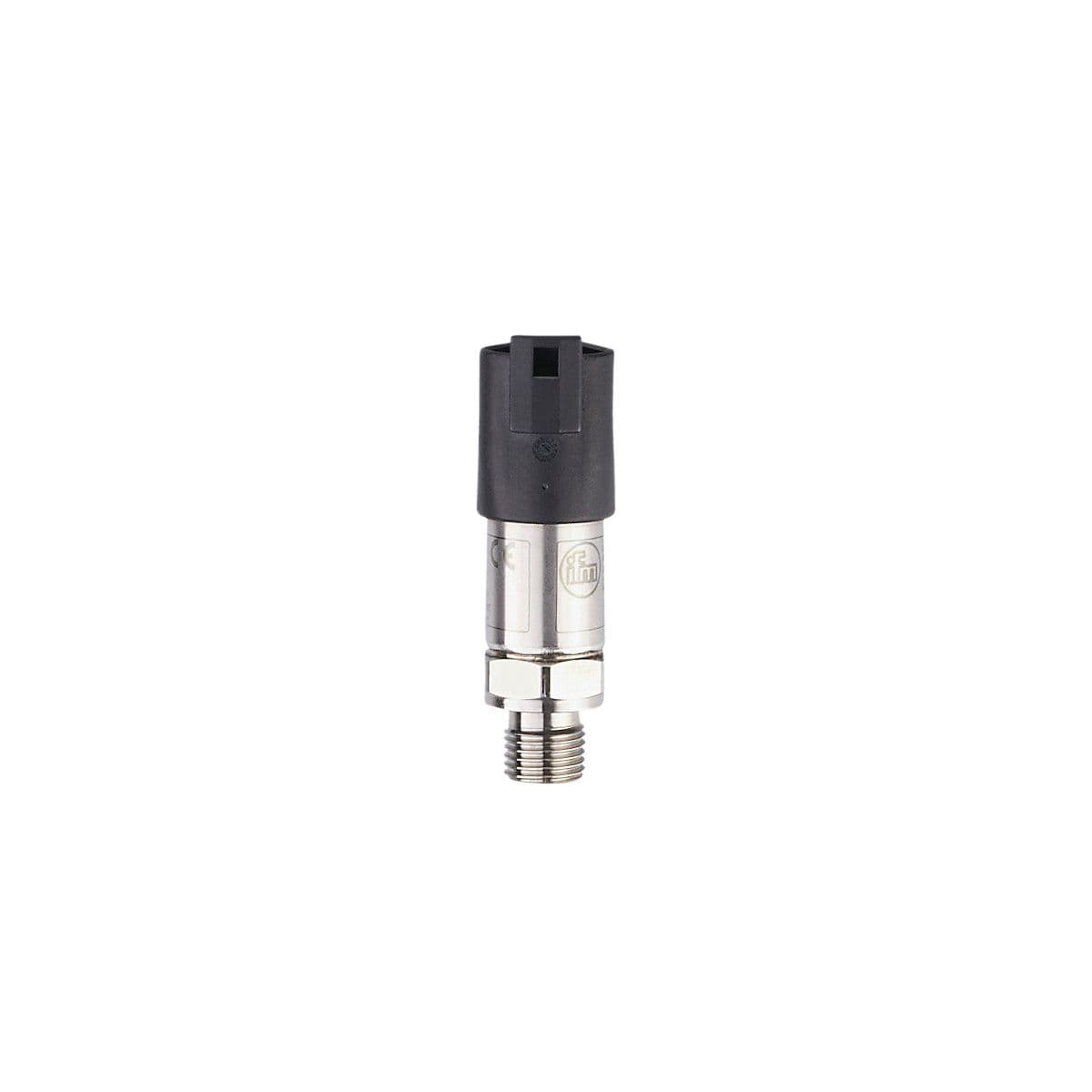

PT5701 ifm Electronic Electronic Components
Part#:PT5701
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Pressure transmitter, For the reliable detection of the system pressure in mobile machines, Output signal: analog signal, Measuring range: 0...250 bar 0...3625 psi 0...25 MPa, Process connection: threaded connection G 1/4 external thread (DIN EN ISO 1179-
Product Details
- Medium temperature [°C] -40...125
- Number of inputs and outputs Number of analog outputs: 1
- Output signal analog signal
- Min. bursting pressure 1200 bar 17400 psi 120 MPa
- Power-on delay time [s] < 0.1
- Overload protection yes
- Pressure rating 625 bar 9060 psi 62.5 Mpa
- Max. load [Ω] (Ub - 8 V) / 21,5 mA; @8V = 0 Ω; @12V max. 200 Ω; @24V max. 750 Ω
- Vacuum resistance [mbar] -1000
- Note on pressure rating static
- Operating voltage [V] 8...32 DC
- Total number of outputs 1
- Application for mobile applications
- Protection class III
- Number of analog outputs 1
- Short-circuit proof yes
- Process connection threaded connection G 1/4 external thread (DIN EN ISO 1179-2)
- Reverse polarity protection yes
- Analog current output [mA] 4...20
- Media liquids and gases
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Type of pressure relative pressure
- Measuring range 0...250 bar 0...3625 psi 0...25 MPa
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
