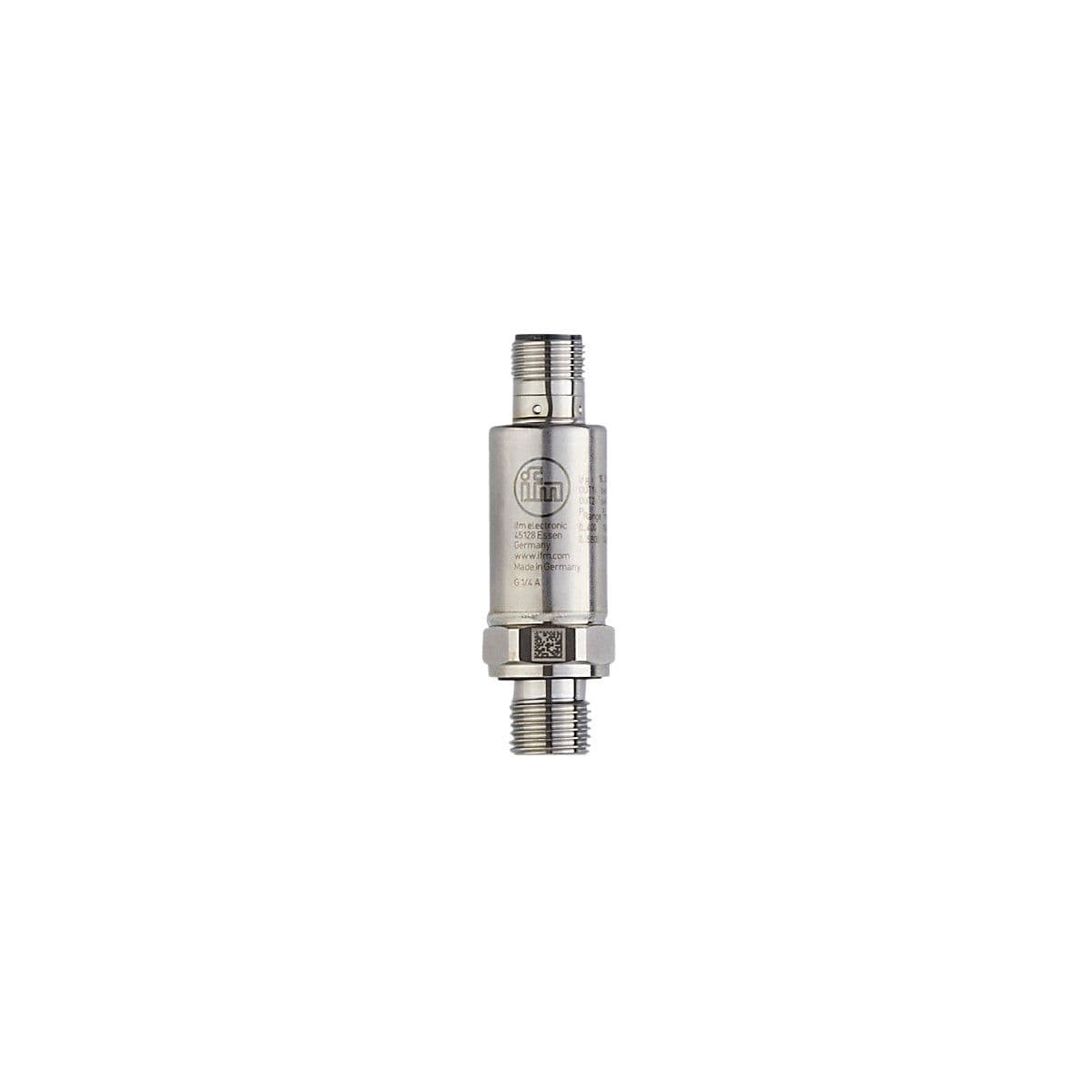

PV8001 ifm Electronic Electronic Components
Part#:PV8001
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Pressure switch with IO-Link, Output signal: switching signal; IO-Link; (configurable), Measuring range: 0...250 bar 0...3626 psi 0...25 MPa, Process connection: threaded connection G 1/4 external thread (DIN EN ISO 1179-2); Internal thread:M5, Measuring
Product Details
- Pressure rating 625 bar 9060 psi 62.5 Mpa
- Type of pressure relative pressure
- Medium temperature [°C] -40...90
- Protection class III
- Switching frequency DC [Hz] < 130
- Measuring element metallic thin film cell
- Application for industrial applications
- Number of inputs and outputs Number of digital outputs: 2
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Output function normally open / closed; (configurable)
- Media liquids and gases
- Process connection threaded connection G 1/4 external thread (DIN EN ISO 1179-2); Internal thread:M5
- Power-on delay time [s] < 0.3
- Vacuum resistance [mbar] -1000
- Type of short-circuit protection yes (non-latching)
- Current consumption [mA] < 15
- Number of digital outputs 2
- Output signal switching signal; IO-Link; (configurable)
- Reverse polarity protection yes
- Short-circuit protection yes
- Max. voltage drop switching output DC [V] 2
- Measuring range 0...250 bar 0...3626 psi 0...25 MPa
- Operating voltage [V] 18...30 DC
- Electrical design PNP/NPN
- Permanent current rating of switching output DC [mA] 100
- Total number of outputs 2
- Overload protection yes
- Min. bursting pressure 1200 bar 17400 psi 120 MPa
- Note on pressure rating static
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
