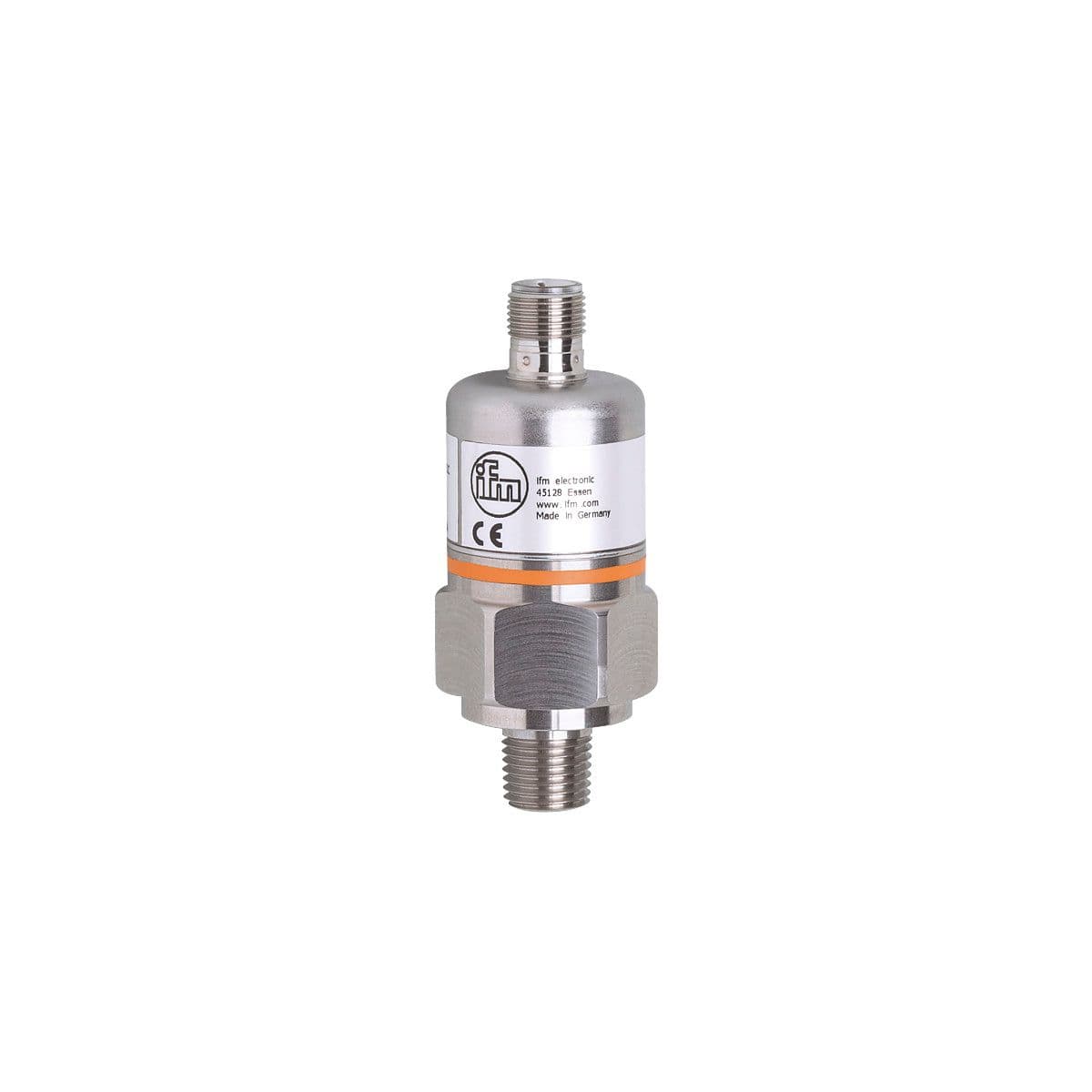

PX3244 ifm Electronic Electronic Components
Part#:PX3244
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Pressure transmitter with ceramic measuring cell, Robust design for use in mobile machines, Output signal: analog signal, Measuring range [psi]: 0...150, Process connection: threaded connection 1/4" NPT external thread Internal thread:M5, System: gold-pla
Product Details
- Process connection threaded connection 1/4" NPT external thread Internal thread:M5
- Type of pressure relative pressure
- Min. bursting pressure [psi] 2175
- Total number of outputs 1
- Number of analog outputs 1
- Medium temperature [°C] -25...90
- Analog current output [mA] 4...20
- Application for industrial applications
- Reverse polarity protection yes
- Operating voltage [V] 9.6...32 DC
- Overload protection yes
- Output signal analog signal
- System gold-plated contacts
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Max. load [Ω] 720; (Ub = 24 V; (Ub - 9,6 V) / 20 mA)
- Pressure rating [psi] 1087
- Number of inputs and outputs Number of analog outputs: 1
- Media liquids and gases
- Measuring range [psi] 0...150
- Protection class III
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
