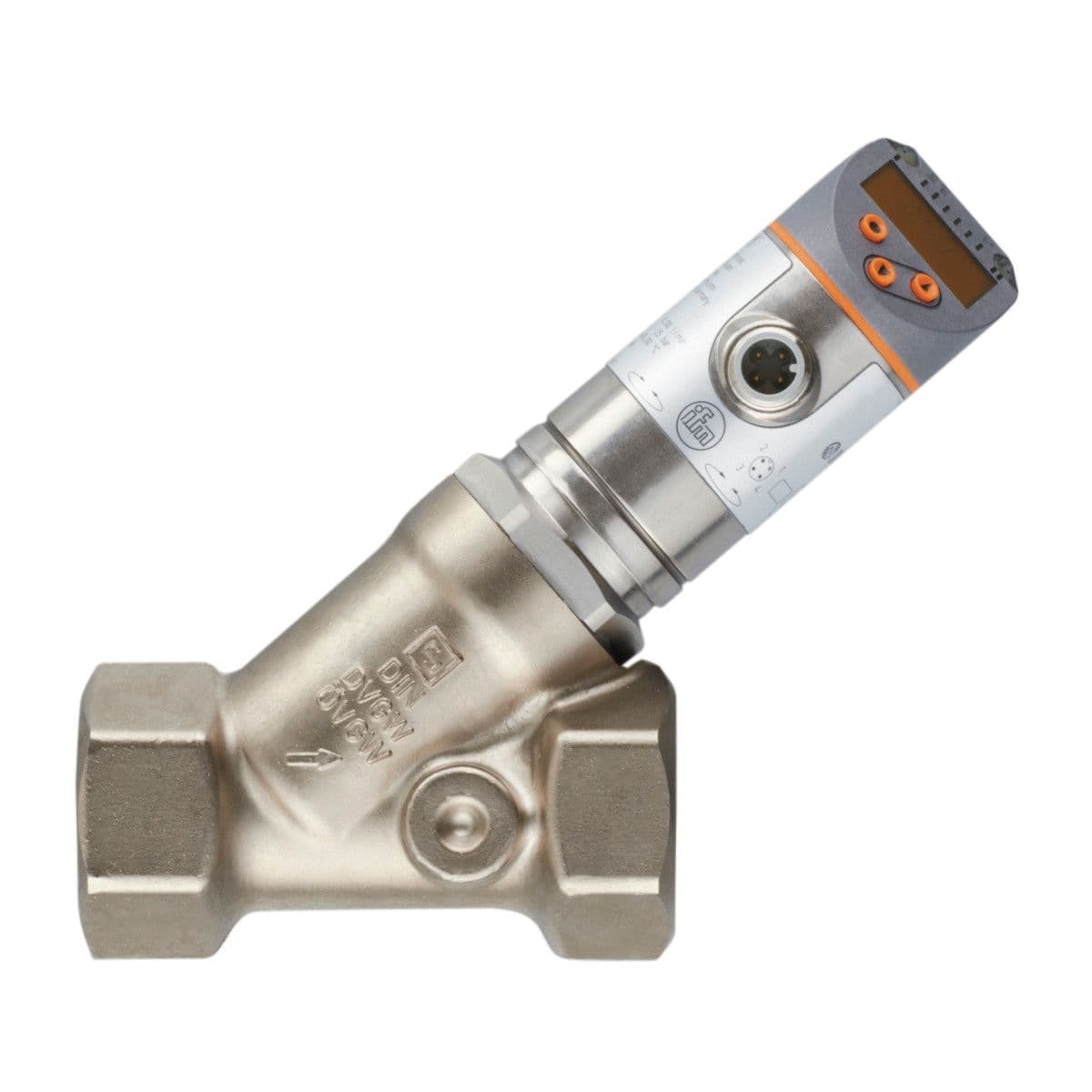

SBN246 ifm Electronic Electronic Components

Product Details

• Measuring range [gph]
  30...1620
• Protection class
  III
• Process connection
  threaded connection 1" NPT
• Operating voltage [V]
  18...30 DC; (according to EN 50178 SELV/PELV)
• Total number of outputs
  2
• Number of analog outputs
  1
• System
  gold-plated contacts
• MAWP (for applications according to CRN) [bar]
  25
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Media
  water; glycol solutions; Coolants; oils
• Current consumption [mA]
  < 50
• Analog current output [mA]
  4...20
• Application
  for industrial applications
• Pressure rating [bar]
  25
• Number of digital outputs
  2
• Short-circuit protection
  yes
• Medium temperature [°F]
  14...212
• Reverse polarity protection
  yes
• Max. load [Ω]
  500
• Note on media
  oil 1 with viscosity: 10 mm²/s (40 °C) oil 2 with viscosity: 46 mm²/s (40 °C)
Permanent current rating of switching output DC [mA]
150; (per output 2 x 200 (...60 °C); 2 x 250 (...40 °C))
Power-on delay time [s]
< 3
Switching cycles (mechanical)
10 million
Pressure rating [Mpa]
2.5
Max. voltage drop switching output DC [V]
2
Frequency of the output [Hz]
0...10000
Overload protection
yes
Output function
normally open / closed; (configurable)
Output signal
switching signal; analog signal; frequency signal; IO-Link; (configurable)
