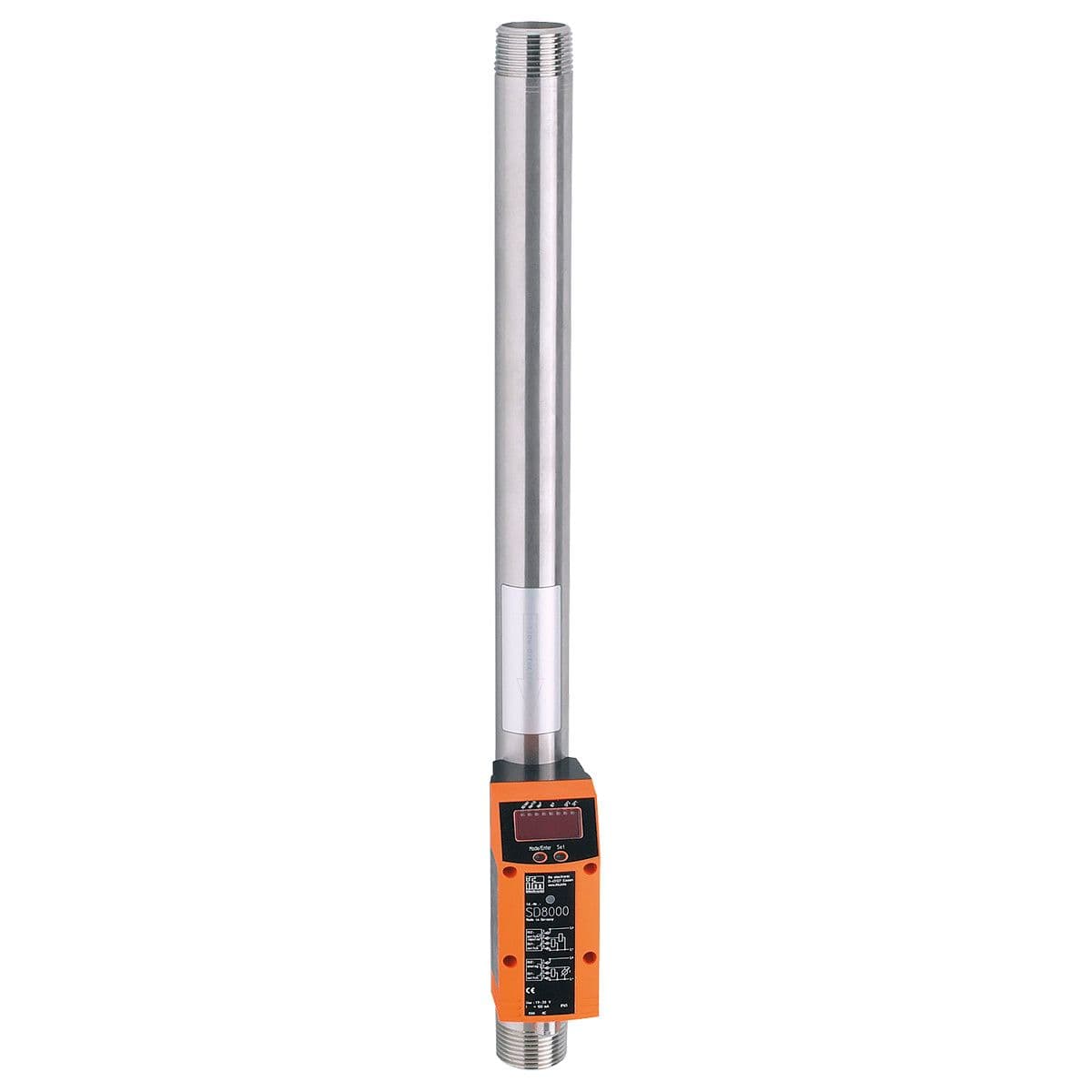

SD8000 ifm Electronic Electronic Components
Part#:SD8000
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

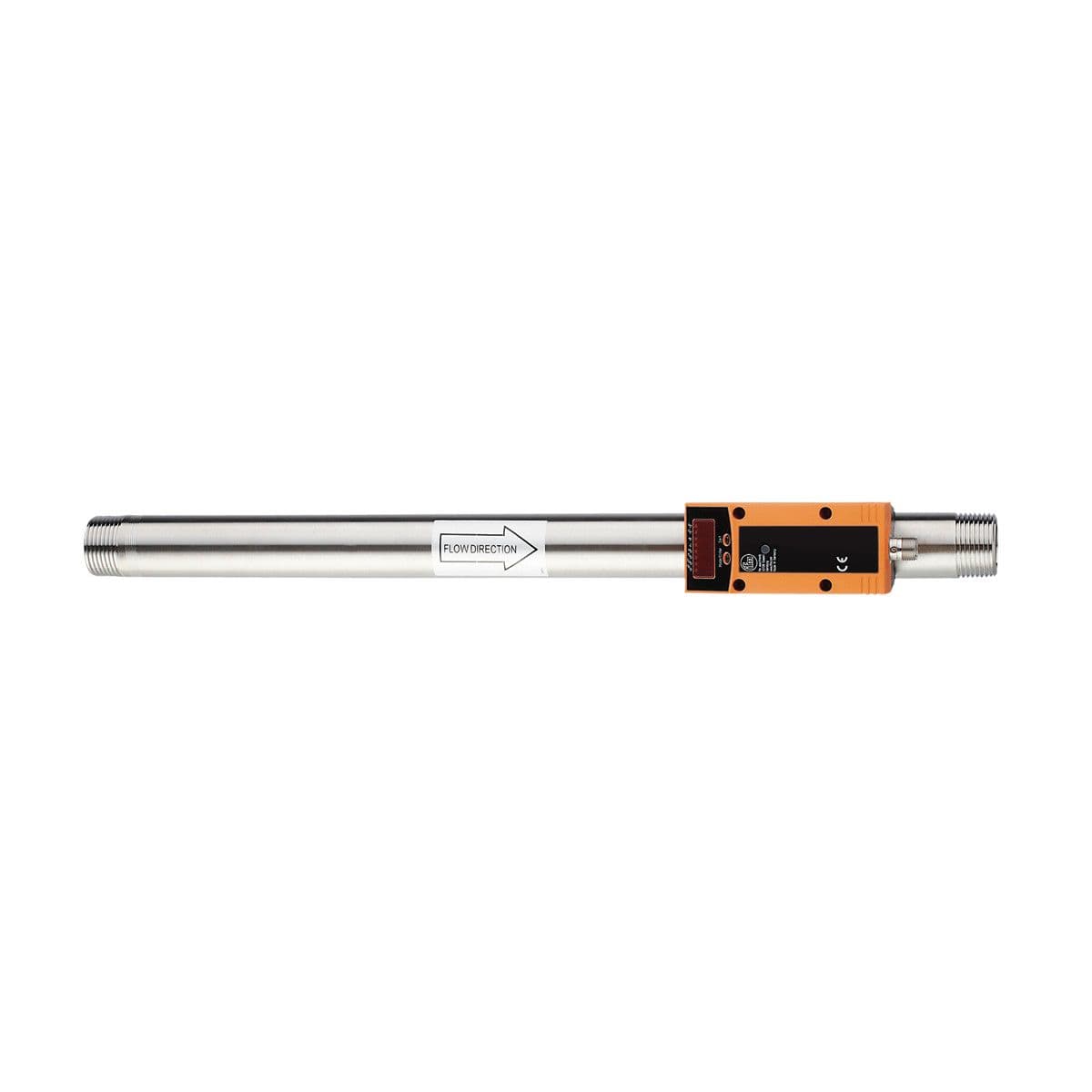

Compressed air meter, Precise measurement of flow, consumption and medium temperature, Number of inputs and outputs: Number of digital outputs: 2; Number of analog outputs: 1, Measuring range: 13...3750 l/min 0.4...109.2 m/s 0.7...225 m³/h, Process connec
Product Details
- Application for industrial applications
- Protection class III
- Current consumption [mA] < 110
- Total number of outputs 2
- Permanent current rating of switching output DC [mA] 250; (per output)
- Operating voltage [V] 18...30 DC; (according to EN 50178 SELV/PELV)
- Pressure rating [bar] 16
- Pressure rating [Mpa] 1.6
- Reverse polarity protection yes
- Type of short-circuit protection yes (non-latching)
- Electrical design PNP
- Process connection threaded connection R 1 DN25
- Number of analog outputs 1
- Number of digital outputs 2
- Media compressed air
- Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1
- Analog current output [mA] 4...20; (scalable)
- Measuring range 13...3750 l/min 0.4...109.2 m/s 0.7...225 m³/h
- Power-on delay time [s] 1
- Output signal switching signal; analog signal; pulse signal; IO-Link; (configurable)
- Max. load [Ω] 500
- Max. voltage drop switching output DC [V] 2
- Overload protection yes
- Medium temperature [°C] 0...60
- Output function normally open / closed; (configurable)
- Short-circuit protection yes
- Note on media air quality ISO 8573-1 class 141 class 344
- Pulse output consumed quantity meter
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
