SM8100 ifm Electronic Electronic Components

SM8100 on Advantage Electric Supply
ifm Electronic

Part#:SM8100

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

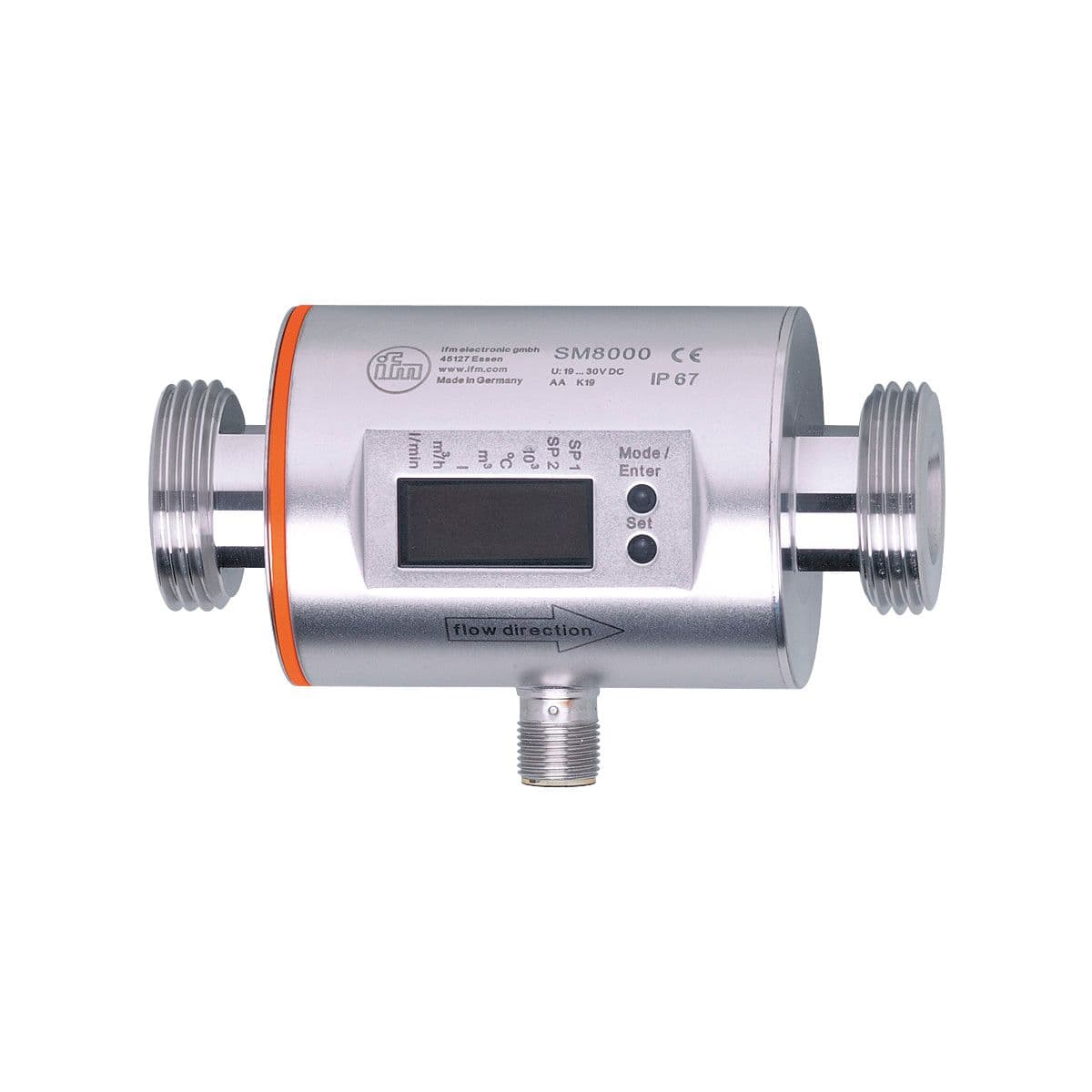

Magnetic-inductive flow meter, Number of inputs and outputs: Number of digital outputs: 2; Number of analog outputs: 1, Measuring range: 0.2...100 l/min 0.01...6 m³/h, Process connection: threaded connection G 1 DN25 flat seal, System: gold-plated contact

Product Details

  • Operating voltage [V]
    18...30 DC; (according to EN 50178 SELV/PELV)
  • Max. voltage drop switching output DC [V]
    2
  • Application
    Totalizer function; for industrial applications
  • Analog current output [mA]
    4...20; (scalable)
  • Media
    Conductive liquids; water; water-based media
  • Reverse polarity protection
    yes
  • Electrical design
    PNP/NPN
  • Pulse output
    flow rate meter
  • Installation
    connection to pipe by means of an adapter
  • Protection class
    III
  • Inputs
    counter reset
  • Min. load resistance [Ω]
    2000
  • Process connection
    threaded connection G 1 DN25 flat seal
  • Pressure rating [Mpa]
    1.6
  • Number of digital outputs
    2
  • Overload protection
    yes
  • Measuring range
    0.2...100 l/min 0.01...6 m³/h
  • Max. load [Ω]
    500
  • System
    gold-plated contacts
  • Current consumption [mA]
    95; (24 V)
  • Analog voltage output [V]
    0...10; (scalable)
  • MAWP (for applications according to CRN) [bar]
    11.2
  • Number of analog outputs
    1
  • Number of inputs and outputs
    Number of digital outputs: 2; Number of analog outputs: 1
  • Short-circuit protection
    yes
  • Medium temperature [°C]
    -10...70
  • Note on media
    conductivity: ≥ 20 µS/cm viscosity: < 70 mm²/s (40 °C)
  • Power-on delay time [s]
    5
  • Output signal
    switching signal; analog signal; pulse signal; IO-Link; (configurable)
  • Type of short-circuit protection
    yes (non-latching)
  • Pressure rating [bar]
    16
  • Total number of outputs
    2
  • Permanent current rating of switching output DC [mA]
    200
  • Output function
    normally open / closed; (configurable)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.



Manufacturer warranty
