TA4115 ifm Electronic Electronic Components
Part#:TA4115
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

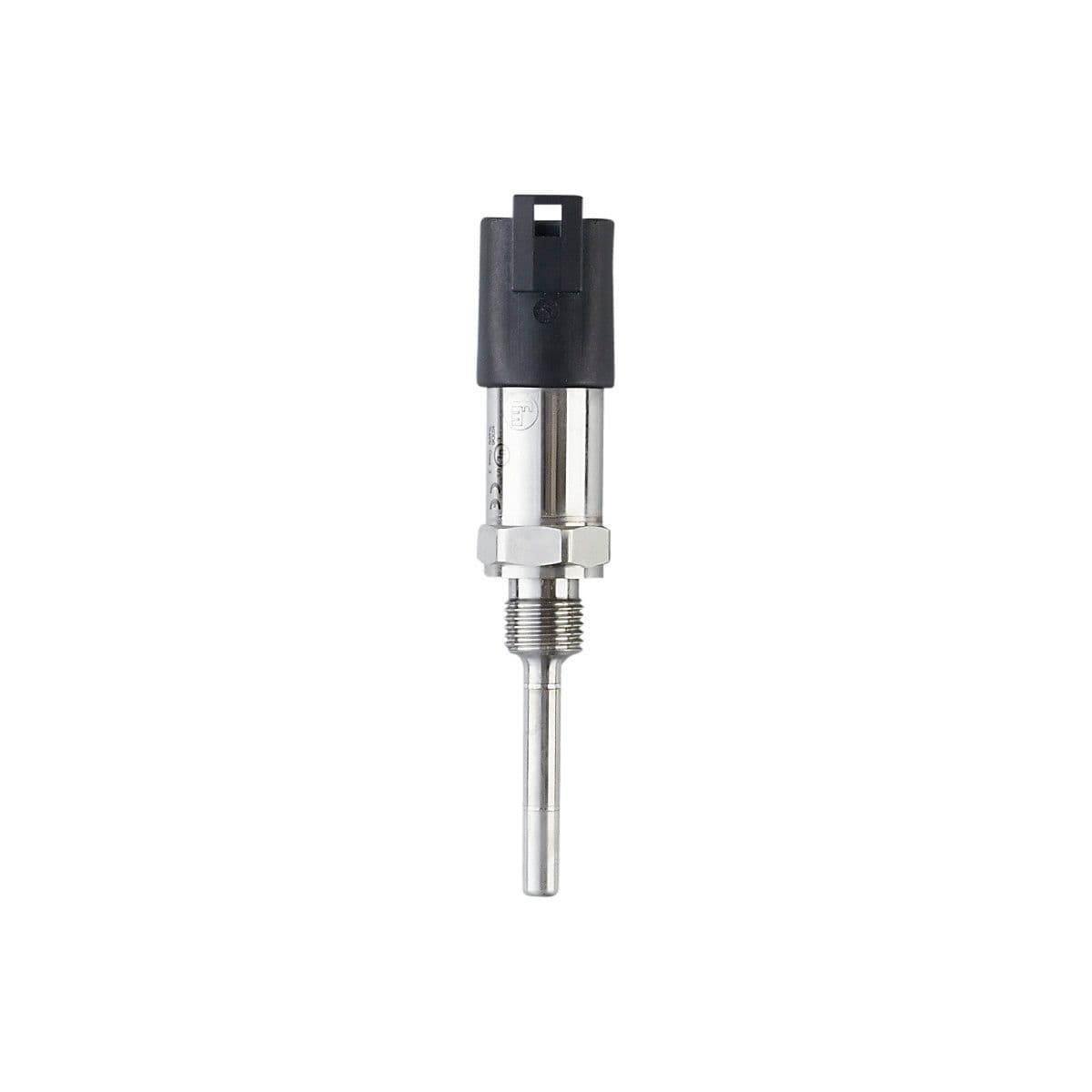

Temperature transmitter, High precision across the entire temperature measurement range, Number of inputs and outputs: Number of analog outputs: 1, Measuring range: -50...150 °C -58...302 °F, Process connection: threaded connection G 1/4 external thread,
Product Details
- Reverse polarity protection yes
- Media liquids and gases
- Protection class III
- Measuring element 1 x Pt 1000; (to DIN EN 60751, class A)
- Installation length EL [mm] 50
- Pressure rating [bar] 400
- Overload protection yes
- Measuring range -50...150 °C -58...302 °F
- Current consumption [mA] < 30
- Number of analog outputs 1
- Operating voltage [V] 10...30 DC; (cULus - Class 2 source required)
- Output signal analog signal
- Process connection threaded connection G 1/4 external thread
- Short-circuit protection yes
- Number of inputs and outputs Number of analog outputs: 1
- Total number of outputs 1
- Max. load [Ω] (Ub - 8,5 V) / 21,5 mA; 24 V: 720 Ω
- Analog current output [mA] 4...20
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
