TK6330 ifm Electronic Electronic Components
Part#:TK6330
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

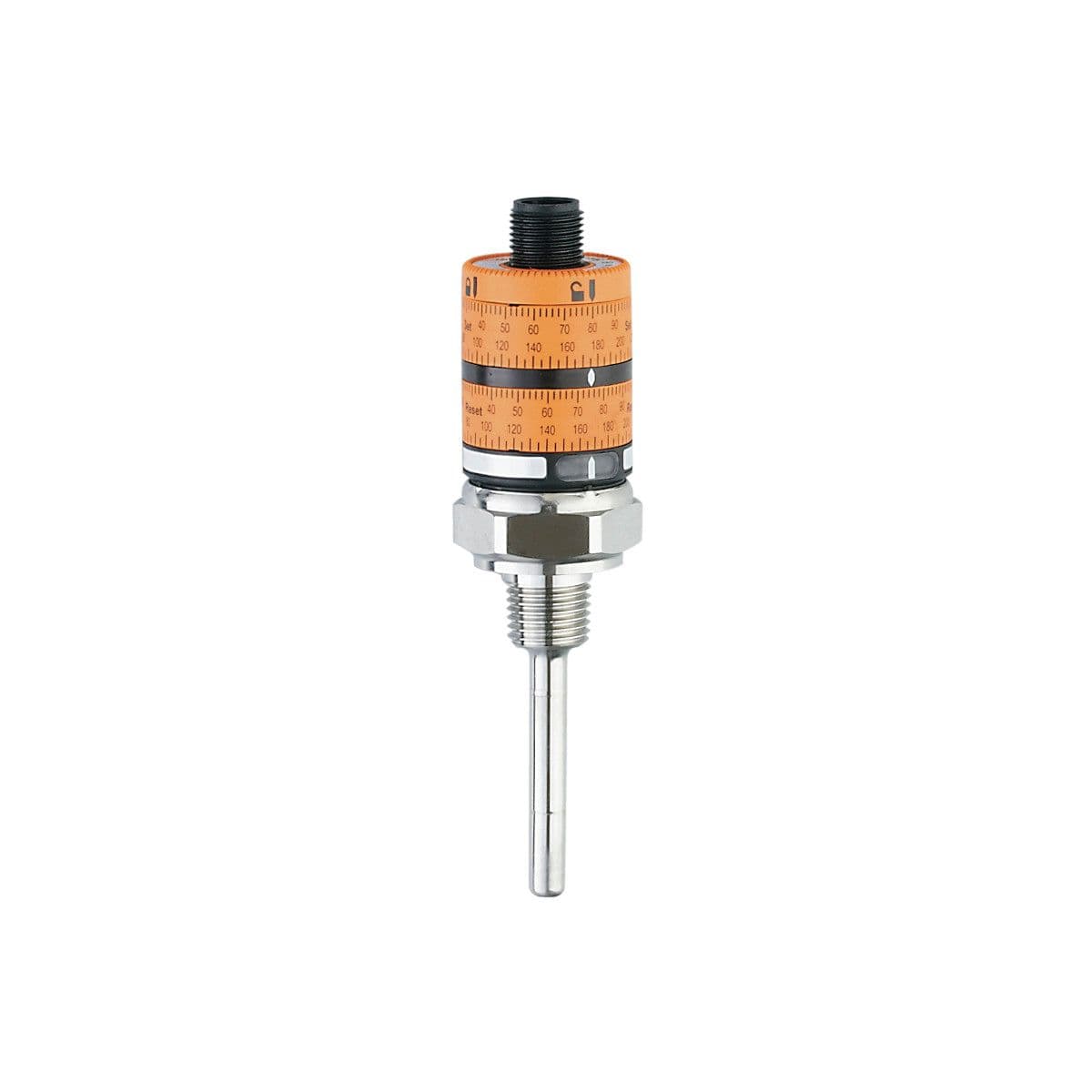

Temperature switch with intuitive switch point setting, Simple switch point setting by means of two setting rings allowing optimum reading, Number of inputs and outputs: Number of digital outputs: 2, Measuring range: -25...140 °C -13...284 °F, Process con
Product Details
- Process connection threaded connection 1/4" NPT
- Overload protection yes
- Medium temperature [°C] -25...125; (145 max. 1 h)
- Protection class III
- Permanent current rating of switching output DC [mA] 500
- Electrical design PNP
- Current consumption [mA] < 30
- Number of digital outputs 2
- Measuring range -25...140 °C -13...284 °F
- Reverse polarity protection yes
- System gold-plated contacts
- Measuring element 1 x Pt 1000; (to DIN EN 60751, class B)
- Short-circuit protection yes
- Minimum installation depth [mm] 15
- Number of inputs and outputs Number of digital outputs: 2
- Total number of outputs 2
- Installation length EL [mm] 39
- Type of short-circuit protection yes (non-latching)
- Pressure rating [bar] 300
- Media liquids and gases
- Power-on delay time [s] 0.5
- Output function complementary
- Operating voltage [V] 9.6...32 DC; (cULus - Class 2 source required)
- Max. voltage drop switching output DC [V] 2
- Output signal switching signal
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
