601407CY Lapp Industrial Automation Components
Part#:601407CY
Manufacturer:Lapp
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

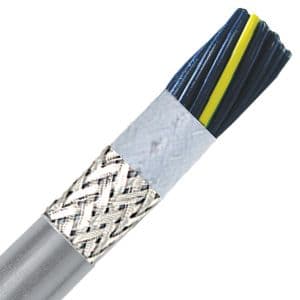

601407CY Lapp - ÖLFLEX 190 CY 7G2.5 14/7C
Product Details
- CONDUCTOR MATERIAL Bare copper
- NOMINAL OD (MM) 13.5
- STATIC TEMPERATURE RATING -40°F to +221°F-40°C to +105°C
- WEIGHT LBS/MFT 282
- NUMBER OF CONDUCTORS 7
- VOLTAGE 600V
- STANDARDS/APPROVALS UL Approved CSA Approved CE Approved
- NOMINAL OD (IN) 0.533
- TEMPERATURE -13°F to +194°F -25°C to +90°C
- UL STYLE / STANDARD UL 13 UL 2277
- SERIES ÖLFLEX® 190 / 190 CY
- JACKET MATERIAL Thermoplastic Polymer
- ATTRIBUTES UL Oil Res I/IISunlight resistant Direct burialNFPA 79
- SHIELDING Braid
- DYNAMIC TEMPERATURE RATING -13°F to +194°F-25°C to +90°C
- TRAY RATINGS UL TC-ER
- JACKET COLOR Gray
- INSULATION PVC
- CONDUCTOR COLOR Black with white printing plus green/yellow ground
- CONDUCTOR STRANDING Stranded
- MANUFACTURER PART NUMBER 601407CY
- AWG/GAUGE 14
- Insulation Material PVC
- Operating Temperature -40 degrees celsius, 105 degrees celsius
- Jacket Color Gray
- Stranding Class 5 Fine Wire
- Gauge 14 american wire gauge
- Voltage 600 volts
- Conductor Material Finely Stranded Bare Copper
- Jacket Material Thermoplastic Polymer
- Bend Radius 6 X Cable Diameter
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
About the product
Cable, Flexible, ÖLFLEX 190 CY, 14 AWG/7C, Shielded, 600V, UL TC-ER, UL AWM, CSA AWM FT4
