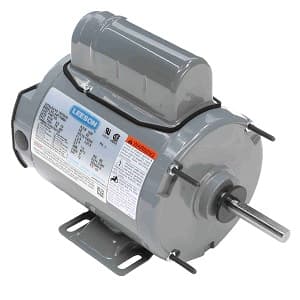

100700 Leeson Electronic Components
Part#:100700
Manufacturer:Leeson
Category:Electronic Components
Product Lifecycle:Active
Product description
Multi Speed; 1/3HP; 48Y Frame Size; 1800 Sync RPM; 115/230 Voltage; AC; TENV Enclosure; NEMA Frame Profile; Single Phase; 60 Hertz; Rigid; Base; 1/2" Shaft Diameter; 3" Base to Center of Shaft; 10.65" Overall Length; 72 Efficiency Full Load
Product Details
- Overall Length 10.65 Inch | 270.51 Millimeter
- Other Features Current Rating 3.2/1.6 Ampere | 4 Poles | Multi Speed
- Inch - Metric Inch
- Efficiency Full Load 72
- Shaft Diameter 0.5 Inch | 12.7 Millimeter
- Weight / LBS 24
- Current AC
- Base to Center of Shaft - Inch 3
- Base to Center Height - Millimeter 76.2
- Mounting Method Rigid
- Frame Profile NEMA
- Base Yes
- Enclosure TENV
- Phase Single Phase
- Horse Power 1/3HP
- Frame Size 48Y
- Hertz 60
- Minimum Buy Quantity N/A
- Weight / Kilogram 10.872
- Voltage 115/230
- Sync RPM 1800
- Brand LEESON
- UNSPSC 26101110
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
