102792 Leeson Electronic Components
Part#:102792
Manufacturer:Leeson
Category:Electronic Components
Product Lifecycle:Active
Product description

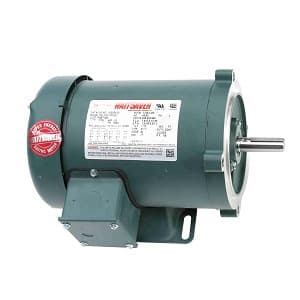

General Purpose; 1/6HP; 48C Frame Size; 1800 Sync RPM; 115/230 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; C-Face and Rigid; Base; 1/2" Shaft Diameter; 3" Base to Center of Shaft; 8.94" Overall Length
Product Details
- Shaft Diameter 0.5 Inch | 12.7 Millimeter
- Overall Length 8.94 Inch | 227.076 Millimeter
- Base Yes
- Weight / LBS 25
- Inch - Metric Inch
- Other Features Current Rating 2.5/1.25 Ampere | 4 Poles | General Purpose
- Base to Center of Shaft - Inch 3
- Efficiency Full Load 56
- Base to Center Height - Millimeter 76.2
- Frame Profile NEMA
- Mounting Method C-Face | Rigid
- Enclosure TEFC
- Current AC
- Phase Three Phase
- Brand LEESON
- Horse Power 1/6HP
- Voltage 115/230
- Sync RPM 1800
- Frame Size 48C
- Hertz 60
- UNSPSC 26101112
- Minimum Buy Quantity N/A
- Weight / Kilogram 11.325
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
