121929 Leeson Electronic Components
Part#:121929
Manufacturer:Leeson
Category:Electronic Components
Product Lifecycle:Active
Product description

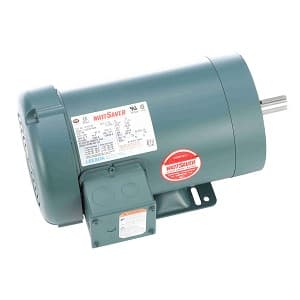

General Purpose; 3HP; 145TC Frame Size; 3600 Sync RPM; 230/460 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; Rigid; Base; 7/8" Shaft Diameter; 3-1/2" Base to Center of Shaft; 13.92" Overall Length; 86.5 Efficiency Full Load
Product Details
- Horse Power 3HP
- Mounting Method Rigid
- Weight / Kilogram 22.197
- Inch - Metric Inch
- Sync RPM 3600
- Current AC
- Voltage 230/460
- Frame Profile NEMA
- Phase Three Phase
- Base to Center of Shaft - Inch 3.5
- UNSPSC 26101112
- Other Features Current Rating 8/4 Ampere | 2 Poles | General Purpose
- Minimum Buy Quantity N/A
- Enclosure TEFC
- Overall Length 13.92 Inch | 353.568 Millimeter
- Frame Size 145TC
- Base Yes
- Brand LEESON
- Base to Center Height - Millimeter 88.9
- Shaft Diameter 0.875 Inch | 22.225 Millimeter
- Hertz 60
- Efficiency Full Load 86.5
- Weight / LBS 49
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
