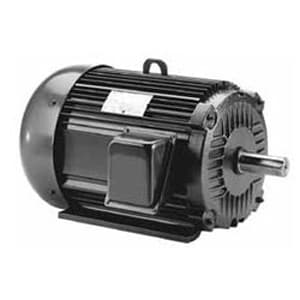

LM24081 Leeson Electronic Components

Name: LM24081
Brand: Leeson

Part#:LM24081

Manufacturer:Leeson

Category:Electronic Components

Product Lifecycle:Active

Product description

Inverter; 2HP; 56HC Frame Size; 1800 Sync RPM; 230/460 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; C-Face and Foot Mounted; Base; 5/8" Shaft Diameter; 3-1/2" Base to Center of Shaft; 13.82" Overall Length

Product Details

Minimum Buy Quantity
N/A
Shaft Diameter
0.625 Inch | 15.875 Millimeter
Horse Power
2HP
Weight / LBS
50
Hertz
60
Weight / Kilogram
22.7
Mounting Method
C-Face | Foot Mounted
Base
Yes
Current
AC
Sync RPM
1800
Brand
LEESON
Phase
Three Phase
Base to Center of Shaft - Inch
3.5
Inch - Metric
Inch
Voltage
230/460
Frame Size
56HC
Enclosure
TEFC
Base to Center Height - Millimeter
88.9
Overall Length
13.82 Inch | 351.028 Millimeter
Other Features
Inverter Rated

Frame Profile

NEMA

Efficiency Full Load

82.5

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty
