LM24955 Leeson Electronic Components

Name: LM24955
Brand: Leeson

Part#:LM24955

Manufacturer:Leeson

Category:Electronic Components

Product Lifecycle:Active

Product description

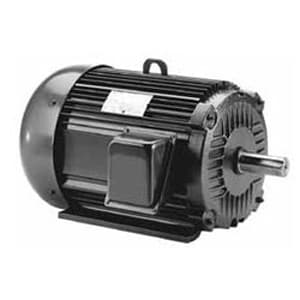

Inverter; 3HP; 182TC Frame Size; 1800 Sync RPM; 230/460 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; C-Face and Foot Mounted; Base; 1-1/8" Shaft Diameter; 4-1/2" Base to Center of Shaft; 15.69" Overall Length

Product Details

Weight / Kilogram
35.866
Current
AC
Inch - Metric
Inch
Overall Length
15.69 Inch | 398.526 Millimeter
UNSPSC
26101106
Frame Profile
NEMA
Brand
LEESON
Enclosure
TEFC
Efficiency Full Load
87.5
Base to Center of Shaft - Inch
4.5
Horse Power
3HP
Voltage
230/460
Other Features
Inverter Rated
Frame Size
182TC
Sync RPM
1800
Phase
Three Phase
Weight / LBS
79
Hertz
60
Base to Center Height - Millimeter
114.3
Minimum Buy Quantity
N/A

Base

Yes

Mounting Method

C-Face | Foot Mounted

Shaft Diameter

1.125 Inch | 28.575 Millimeter

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty

LM24955 Leeson
