TASE70 Leeson Mechanical Components

TASE70 on Advantage Electric Supply
Leeson

Part#:TASE70

Manufacturer:Leeson

Category:Mechanical Components

Product Lifecycle:Active

Product description

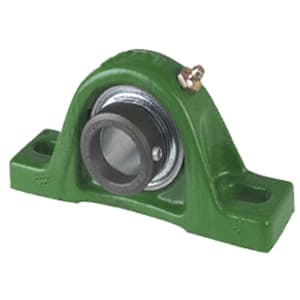

Pillow Block Bearing; 2 Bolt Pillow Block; 70MM Bore; 79.4MM Base to Center Height; Eccentric Collar Mount; Ball Bearing; 196.5MM Minimum Bolt Spacing; 208.5MM Maximum Bolt Spacing; Relubricatable; Cast Iron; Non-Expansion

Product Details

  • Nominal Bolt Center to Center
    8 Inch | 203.2 Millimeter
  • Bore
    2.756 Inch | 70 Millimeter
  • Base to Center Height
    3.125 Inch | 79.4 Millimeter
  • Bolt Spacing Minimum
    7.736 Inch | 196.5Millimeter
  • Bolt Spacing Maximum
    8.209 Inch | 208.5Millimeter
  • Weight / LBS
    14.134
  • Length Thru Bore
    2.602 Inch | 66.1 Millimeter
  • Other Features
    Single Row
  • Inch - Metric
    Metric
  • Housing Configuration
    1 Piece Solid
  • Expansion / Non-expansion
    Non-Expansion
  • Insert Part Number
    GE70KPPB3
  • Seals
    Double Triply
  • Relubricatable
    Yes
  • Brand
    INA
  • Minimum Buy Quantity
    N/A
  • UNSPSC
    31171511
  • Weight / Kilogram
    7.365
  • Housing Material
    Cast Iron
  • Housing Style
    2 Bolt Pillow Block
  • Mounting Method
    Eccentric Collar
  • Rolling Element
    Ball Bearing
  • Number of Mounting Holes
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty

TASE70 Leeson
