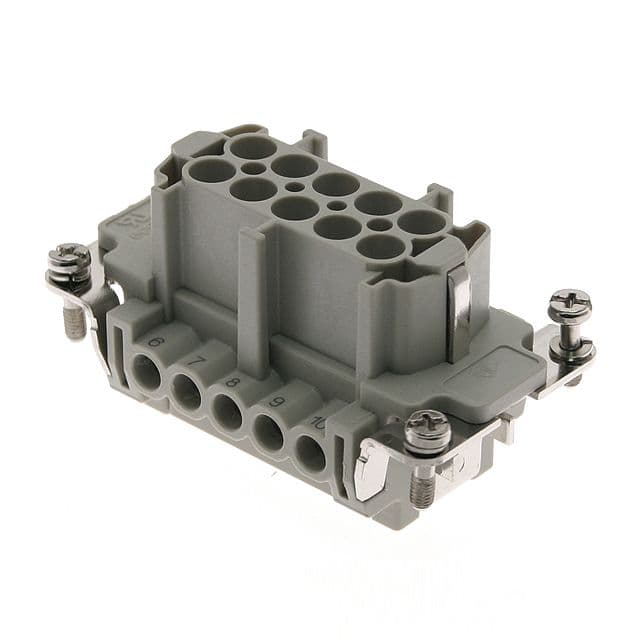

CNEF-10T Mencom Electronic Components

Name: CNEF-10T
Brand: Mencom
Price: 17.4 USD
Availability: BackOrder

Part#:CNEF-10T

Manufacturer:Mencom

Category:Electronic Components

Product Lifecycle:Active

Product description

Standard, CNE series, Female Rectangular Insert, size 57.27, 10 pin, 16 amp, Screw

Product Details

Component Type
Insert
Wire Gauge
20-12
Weight (lbs.)
0.165000
Enclosure Dimension
57.27
Voltage Rating
600
Upper AWG
12
Gasket/O-Ring
No
Gender
Female
Temperature Range in Degrees Celsius
-40 C to +125 C
Pin Count
10
ILME Series
CNE
Lower AWG
20
Product Type
Rectangular Connectors
Insert Dimension
57.27
Cover
No
Housing/Insert Type
Standard
Contact Plating
Silver
Number of Entries
0
Amperage Rating
16
Termination
Screw

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CNEF-10T on Advantage Electric Supply is $17.40. Order now.
