CNEM-24T Mencom Electronic Components

Name: CNEM-24T
Brand: Mencom
Price: 29.45 USD
Availability: BackOrder

Part#:CNEM-24T

Manufacturer:Mencom

Category:Electronic Components

Product Lifecycle:Active

Product description

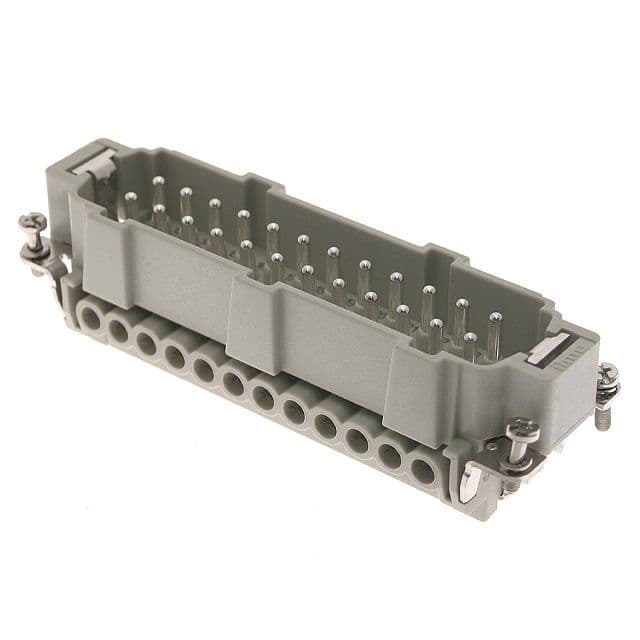

Standard, CNE series, Male Rectangular Insert, size 104.27, 24 pin, 16 amp, Screw

Product Details

Component Type
Insert
Termination
Screw
Product Type
Rectangular Connectors
Lower AWG
20
Pin Count
24
Upper AWG
14
Enclosure Dimension
104.27
Housing/Insert Type
Standard
Double Insert
104.62
Temperature Range in Degrees Celsius
-40 C to +125 C
Contact Plating
Silver
Number of Entries
0
Voltage Rating
600
Gasket/O-Ring
No
Cover
No
ILME Series
CNE
Gender
Male
Weight (lbs.)
0.267000
Insert Dimension
104.27
Amperage Rating
16

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CNEM-24T on Advantage Electric Supply is $29.45. Order now.

CNEM-24T Related Documents

113.pdf-1631087615833.pdf CNEM-24T.PDF-1631087615841.pdf CNEM-24T.DWG-1631087615837.dwg CNEM-24T.ZIP-1631087615836.zip CNEM-24T.DXF-1631087615843.dxf
