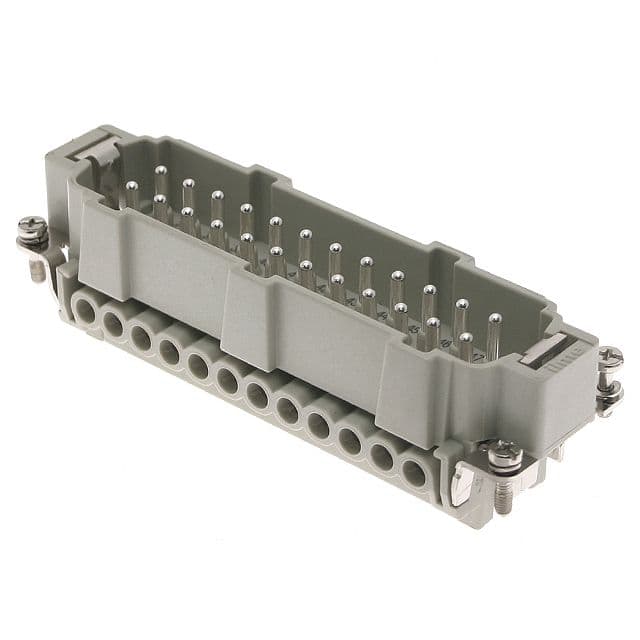

CNEM-24TN Mencom Electronic Components

Name: CNEM-24TN
Brand: Mencom
Price: 30.7 USD
Availability: BackOrder

Part#:CNEM-24TN

Manufacturer:Mencom

Category:Electronic Components

Product Lifecycle:Active

Product description

Standard, CNE series, Male Rectangular Insert, size 104.27, 24 pin, 16 amp, Screw, (25-48)

Product Details

Housing/Insert Type
Standard
Enclosure Dimension
104.27
Voltage Rating
600
Number of Entries
0
Upper AWG
14
ILME Series
CNE
Amperage Rating
16
Temperature Range in Degrees Celsius
-40 C to +125 C
Gasket/O-Ring
No
Contact Plating
Silver
Weight (lbs.)
0.247000
Double Insert
104.62
Insert Dimension
104.27
Product Type
Rectangular Connectors
Gender
Male
Termination
Screw
Component Type
Insert
Cover
No
Pin Count
24
Lower AWG
20

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CNEM-24TN on Advantage Electric Supply is $30.70. Order now.

CNEM-24TN Related Documents

CNEM-24TN.DWG-1631087952983.dwg CNEM-24TN.ZIP-1631087952987.zip CNEM-24TN.PDF-1631087952980.pdf 115.pdf-1631087952989.pdf CNEM-24TN.DXF-1631087952990.dxf
