CNEM-24TXN Mencom Electronic Components

Name: CNEM-24TXN
Brand: Mencom
Price: 27.8 USD
Availability: BackOrder

Part#:CNEM-24TXN

Manufacturer:Mencom

Category:Electronic Components

Product Lifecycle:Active

Product description

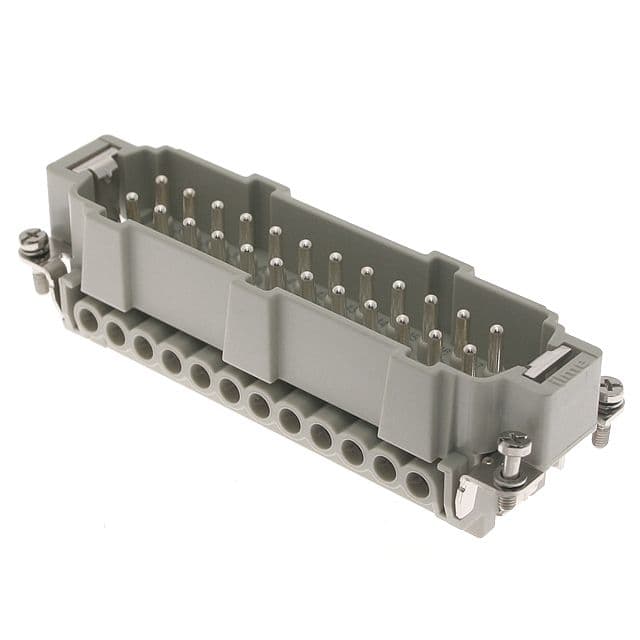

Standard, CNE series, Male Rectangular Insert, size 104.27, 24 pin, 16 amp, Screw, w/o pressure plate, (25-48)

Product Details

Pin Count
24
Voltage Rating
600
Enclosure Dimension
104.27
Lower AWG
24
Gasket/O-Ring
No
Amperage Rating
16
Product Type
Rectangular Connectors
Gender
Male
Insert Dimension
104.27
Contact Plating
Silver
ILME Series
CNE
Termination
Screw
Number of Entries
0
Component Type
Insert
Upper AWG
14
Double Insert
104.62
Housing/Insert Type
Standard
Cover
No
Temperature Range in Degrees Celsius
-40 C to +125 C
Weight (lbs.)
0.244000

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CNEM-24TXN on Advantage Electric Supply is $27.80. Order now.

CNEM-24TXN Related Documents

115.pdf-1631087169258.pdf

Manufacturer warranty
