CPF-06RY Mencom Electronic Components

Name: CPF-06RY
Brand: Mencom
Price: 41.35 USD
Availability: BackOrder

Part#:CPF-06RY

Manufacturer:Mencom

Category:Electronic Components

Product Lifecycle:Active

Product description

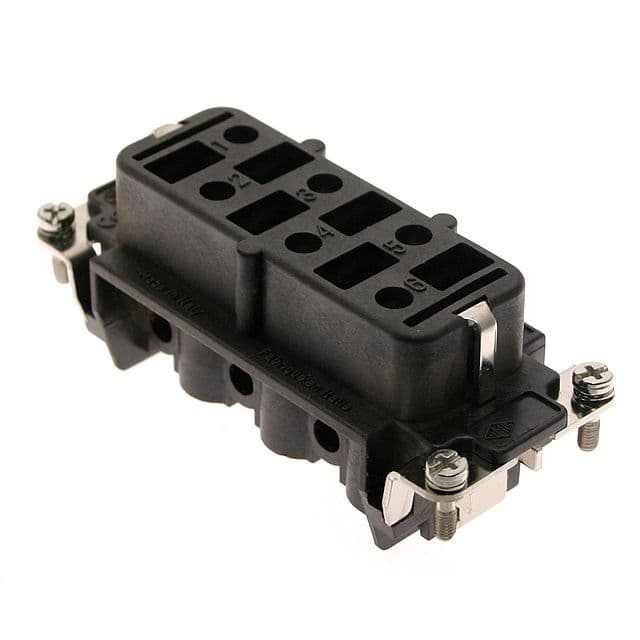

High-temp, CP series, Female Rectangular Insert, size 77.27, 6 pin, 35 amp, Screw

Product Details

Insert Dimension
77.27
Voltage Rating
600
Component Type
Insert
Cover
No
Housing/Insert Type
High-Temp
Amperage Rating
35
Contact Plating
Silver
Termination
Screw
Gasket/O-Ring
No
Enclosure Dimension
77.27
Product Type
Rectangular Connectors
Lower AWG
16
ILME Series
CP
Temperature Range in Degrees Celsius
-40 C to +125 C
Number of Entries
0
Upper AWG
10
Pin Count
6
Gender
Female
Weight (lbs.)
0.211000

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CPF-06RY on Advantage Electric Supply is $41.35. Order now.
