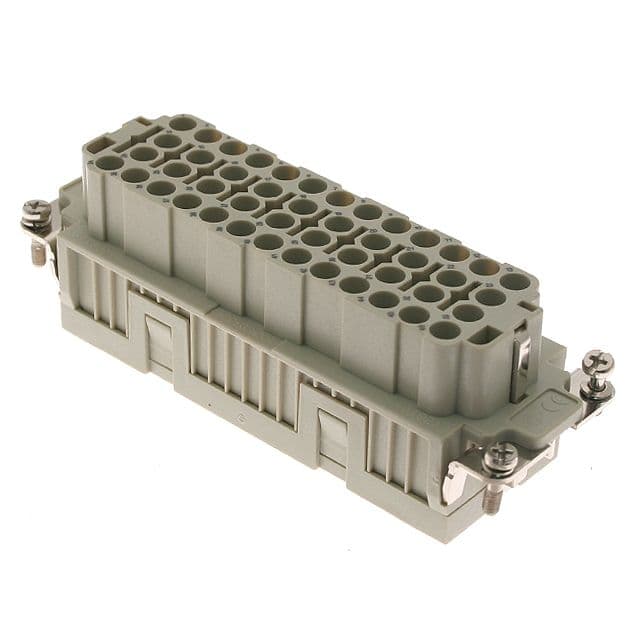

CQEF-46N Mencom Electronic Components

Name: CQEF-46N
Brand: Mencom
Price: 26.1 USD
Availability: BackOrder

Part#:CQEF-46N

Manufacturer:Mencom

Category:Electronic Components

Product Lifecycle:Active

Product description

Standard, CQE series, Female Rectangular Insert, size 104.27, 46 pin, 16 amp, Crimp, (47-92)

Product Details

Insert Dimension
104.27
Cover
No
Housing/Insert Type
Standard
Pin Count
46
Temperature Range in Degrees Celsius
-40 C to +125 C
Product Type
Rectangular Connectors
Weight (lbs.)
0.188000
Component Type
Insert
ILME Series
CQE
Amperage Rating
16
Termination
Crimp
Gasket/O-Ring
No
Gender
Female
Enclosure Dimension
104.27
Double Insert
104.62
Lower AWG
20
Number of Entries
0
Voltage Rating
600
Upper AWG
12

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CQEF-46N on Advantage Electric Supply is $26.10. Order now.

CQEF-46N Related Documents

173.pdf-1631087586710.pdf
