CSAHF-16 Mencom Electronic Components

Name: CSAHF-16
Brand: Mencom
Price: 27.65 USD
Availability: BackOrder

Part#:CSAHF-16

Manufacturer:Mencom

Category:Electronic Components

Product Lifecycle:Active

Product description

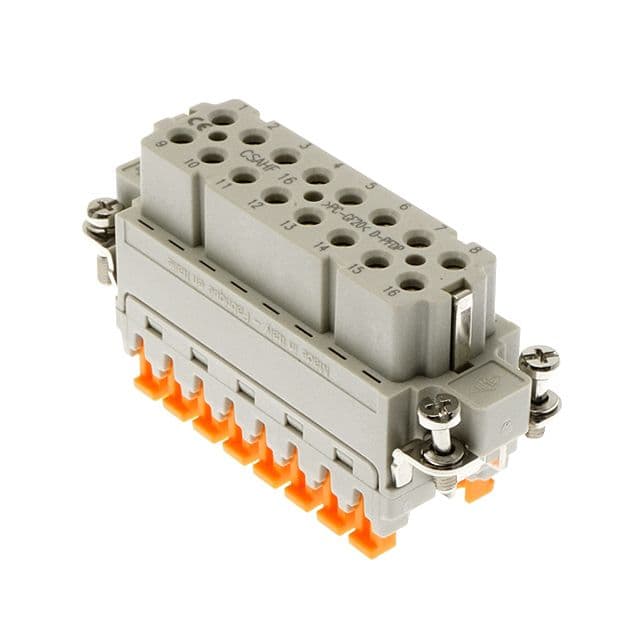

Standard, CSH series, Female Rectangular Insert, size 49.16, 16 pin, 16 amp, Squich Spring

Product Details

Number of Entries
0
Enclosure Dimension
66.16
Lower AWG
26
Pin Count
16
Gender
Female
Insert Dimension
66.16
Upper AWG
14
Component Type
Insert
Cover
No
Product Type
Rectangular Connectors
ILME Series
CSH
Wire Gauge
14-26
Gasket/O-Ring
No
Amperage Rating
16
Housing/Insert Type
Standard
Contact Plating
Silver
Voltage Rating
600
Termination
Squich Spring
Weight (lbs.)
0.205000
Temperature Range in Degrees Celsius
-40 C to +125 C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CSAHF-16 on Advantage Electric Supply is $27.65. Order now.
