CSEF-16N Mencom Electronic Components

Name: CSEF-16N
Brand: Mencom
Price: 26.15 USD
Availability: BackOrder

Part#:CSEF-16N

Manufacturer:Mencom

Category:Electronic Components

Product Lifecycle:Active

Product description

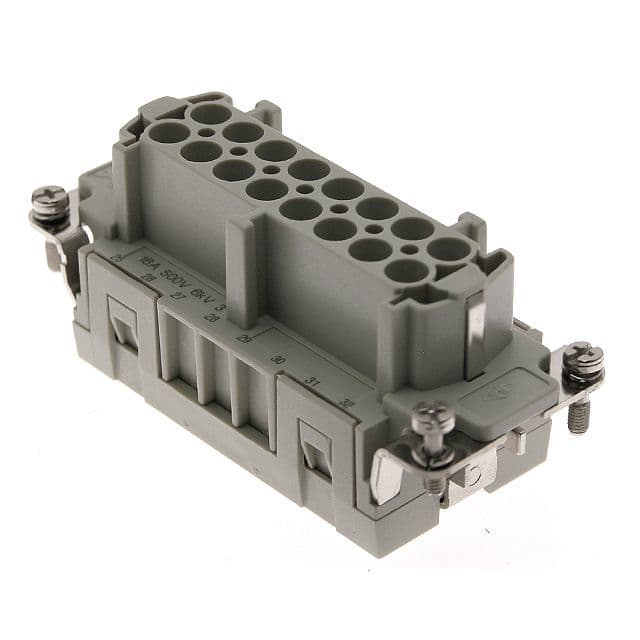

Standard, CSE series, Female Rectangular Insert, size 77.27, 16 pin, 16 amp, Standard Spring, (17-32)

Product Details

Pin Count
16
Termination
Standard Spring
Component Type
Insert
Lower AWG
26
Insert Dimension
77.27
Double Insert
77.62
Cover
No
Contact Plating
Silver
ILME Series
CSE
Gasket/O-Ring
No
Temperature Range in Degrees Celsius
-40 C to +125 C
Housing/Insert Type
Standard
Gender
Female
Number of Entries
0
Upper AWG
14
Product Type
Rectangular Connectors
Amperage Rating
16
Enclosure Dimension
77.27
Voltage Rating
600
Weight (lbs.)
0.188000

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CSEF-16N on Advantage Electric Supply is $26.15. Order now.

CSEF-16N Related Documents

CSEF-16N.PDF-1631088189720.pdf CSEF-16N.DXF-1631088189725.dxf CSEF-16N.DWG-1631088189723.dwg
