CSHF-16 Mencom Electronic Components

Name: CSHF-16
Brand: Mencom
Price: 24.65 USD
Availability: BackOrder

Part#:CSHF-16

Manufacturer:Mencom

Category:Electronic Components

Product Lifecycle:Active

Product description

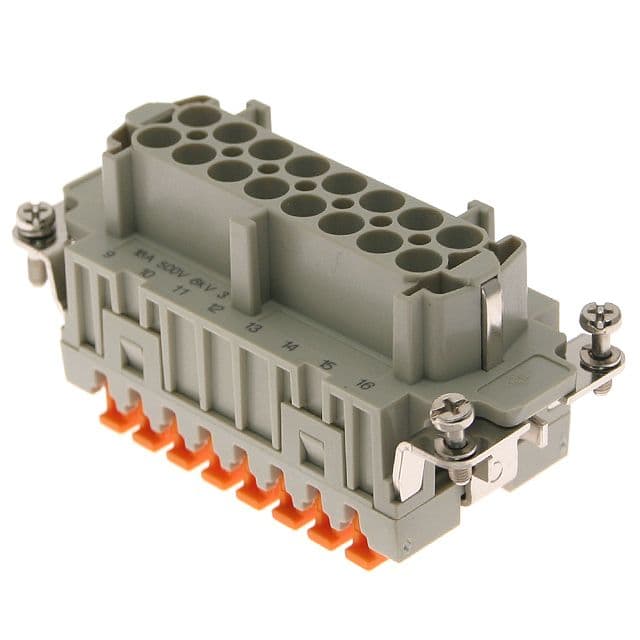

Standard, CSH series, Female Rectangular Insert, size 77.27, 16 pin, 16 amp, Squich Spring

Product Details

Number of Entries
0
Voltage Rating
600
Product Type
Rectangular Connectors
Cover
No
ILME Series
CSH
Lower AWG
26
Gasket/O-Ring
No
Enclosure Dimension
77.27
Amperage Rating
16
Insert Dimension
77.27
Double Insert
77.62
Temperature Range in Degrees Celsius
-40 C to +125 C
Housing/Insert Type
Standard
Upper AWG
14
Pin Count
16
Gender
Female
Termination
Squich Spring
Component Type
Insert
Contact Plating
Silver
Weight (lbs.)
0.205000

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CSHF-16 on Advantage Electric Supply is $24.65. Order now.

CSHF-16 Related Documents

CSHF-16.DXF-1631087862896.dxf CSHF-16.ZIP-1631087862862.zip CSHF-16.PDF-1631087862860.pdf 112.pdf-1631087862858.pdf CSHF-16.DWG-1631087862864.dwg
