CSHM-16-16N Mencom Electronic Components

Name: CSHM-16-16N
Brand: Mencom
Price: 53.9 USD
Availability: BackOrder

CSHM-16-16N on Advantage Electric Supply

Part#:CSHM-16-16N

Manufacturer:Mencom

Category:Electronic Components

Product Lifecycle:Active

Product description

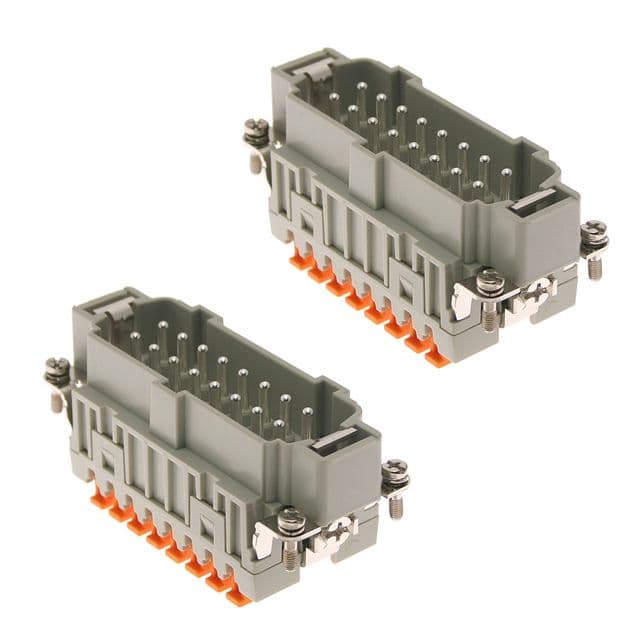

Standard, CSH series, Kitted, Male Rectangular Inserts, size 77.27, 16 pin, 16 amp, Squich Spring

Product Details

Number of Entries
0
Amperage Rating
16
Enclosure Dimension
77.27
Voltage Rating
600
Temperature Range in Degrees Celsius
-40 C to +125 C
Insert Dimension
77.27
Double Insert
77.62
Product Type
Rectangular Connectors
Gasket/O-Ring
No
Termination
Squich Spring
Pin Count
16
Gender
Male
Upper AWG
14
Component Type
Insert
Cover
No
Housing/Insert Type
Standard
Contact Plating
Silver
ILME Series
CSH
Lower AWG
26
Weight (lbs.)
0.380000

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CSHM-16-16N on Advantage Electric Supply is $53.90. Order now.

CSHM-16-16N Related Documents

CSHM-16-16N.DWG-1631087371475.dwg CSHM-16-16N.PDF-1631087371206.pdf CSHM-16-16N.DXF-1631087371211.dxf
