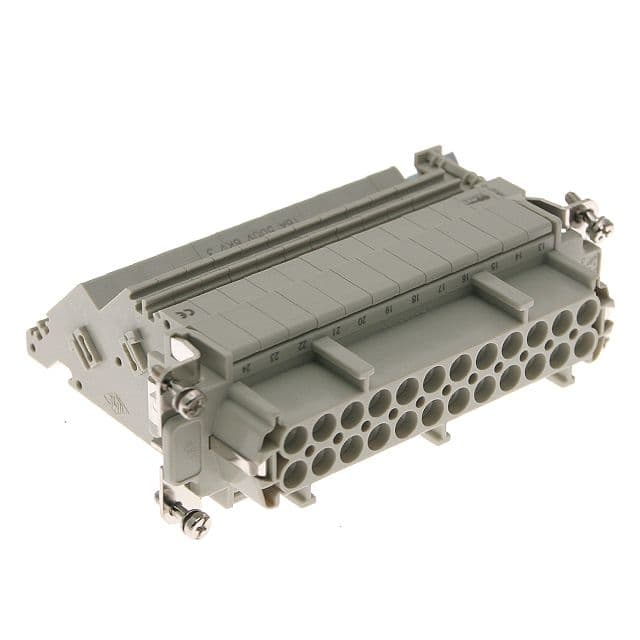

CTSEF-24L Mencom Electronic Components

Name: CTSEF-24L
Brand: Mencom
Price: 118.5 USD
Availability: BackOrder

Part#:CTSEF-24L

Manufacturer:Mencom

Category:Electronic Components

Product Lifecycle:Active

Product description

Standard, CTSE series, Female Rectangular Insert, size 104.27, 24 pin, 16 amp, Standard Spring Left ground

Product Details

ILME Series
CTSE
Gasket/O-Ring
No
Upper AWG
14
Housing/Insert Type
Standard
Cover
No
Pin Count
24
Contact Plating
Silver
Insert Dimension
104.27
Gender
Female
Temperature Range in Degrees Celsius
-40 C to +125 C
Number of Entries
0
Termination
Standard Spring
Enclosure Dimension
104.27
Voltage Rating
600
Weight (lbs.)
0.454000
Product Type
Rectangular Connectors
Lower AWG
26
Component Type
Insert
Amperage Rating
16

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CTSEF-24L on Advantage Electric Supply is $118.50. Order now.

CTSEF-24L Related Documents

163.pdf-1631088142882.pdf
