JAN-630-008-E000 Mencom Electronic Components

Name: JAN-630-008-E000
Brand: Mencom
Price: 167.25 USD
Availability: BackOrder

JAN-630-008-E000 on Advantage Electric Supply

Part#:JAN-630-008-E000

Manufacturer:Mencom

Category:Electronic Components

Product Lifecycle:Active

Product description

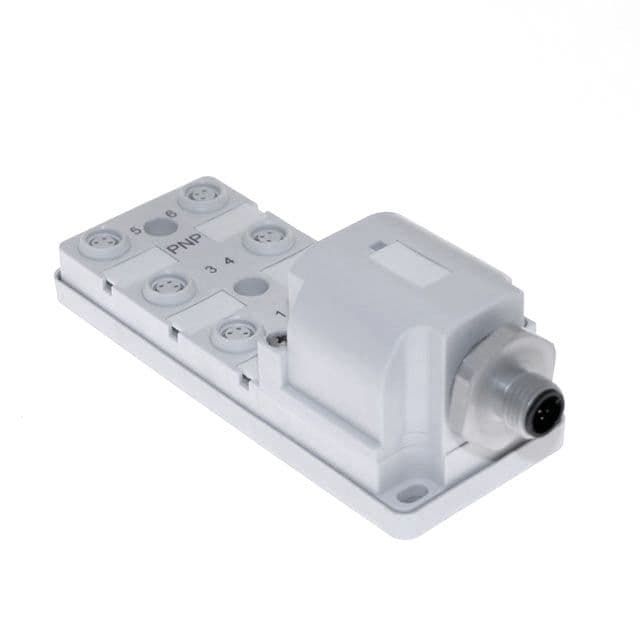

JAN Junction Blocks, 3 Pin, 6 Port, No Led, MDC Home Run Connector

Product Details

Home Run Pin Count
8
Amperage Rating
8
Home Run Connector
MDC
Weight (lbs.)
0.340000
Home Run Coupling
M12
Number of Ports
6 Port
IP Rating
IP67
Mating Thread / Type Head 1
M12
Pin Count
3
Port Thread Gender
Female
Gender
Male
Mencom Series
JAN
Voltage Rating
60
Port Coupling
M8
Home Run Thread Gender
Male
Color Code
DC
Product Type
Junction Blocks
Circuit
No LED
Shell / Coupling Nut Material
Clear Anodized Aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of JAN-630-008-E000 on Advantage Electric Supply is $167.25. Order now.

JAN-630-008-E000 Related Documents

JAN-630-008-E000.PDF-1631088051818.pdf S-4.pdf-1631088051820.pdf JAN-630-008-E000.DWG-1631088051814.dwg JAN-630-008-E000.DXF-1631088051816.dxf
