JDC-040-013-C100 Mencom Electronic Components

Name: JDC-040-013-C100
Brand: Mencom
Price: 317.85 USD
Availability: BackOrder

JDC-040-013-C100 on Advantage Electric Supply

Part#:JDC-040-013-C100

Manufacturer:Mencom

Category:Electronic Components

Product Lifecycle:Active

Product description

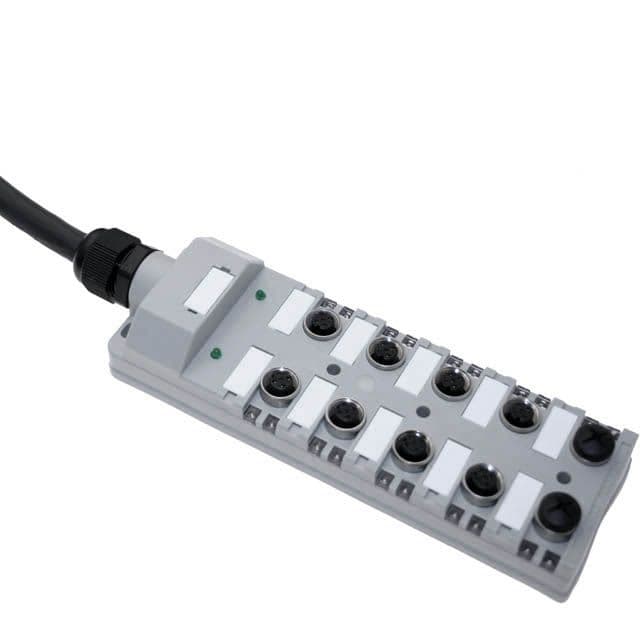

JDC Junction Blocks, 4 Pin, 10 Port, No Led, 10 Meters of Home Run Cable

Product Details

Pin Count
4
Product Type
Junction Blocks
Wire Gauge
22
Cable Jacket Material
PUR
Circuit
No LED
Cable Length in feet
30
Weight (lbs.)
4.234000
Home Run Pin Count
13
Port Coupling
M12
IP Rating
IP67
Home Run Connector
Cable
Amperage Rating
8
Cable O.D.
0.388
Voltage Rating
150
Mencom Series
JDC
Number of Ports
10 Port
Color Code
DC
Port Thread Gender
Female
Cable Length in meters
10
Jacket Color
Black

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of JDC-040-013-C100 on Advantage Electric Supply is $317.85. Order now.
