JDC-04P-213-C050 Mencom Electronic Components

Name: JDC-04P-213-C050
Brand: Mencom
Price: 265.95 USD
Availability: BackOrder

JDC-04P-213-C050 on Advantage Electric Supply

Part#:JDC-04P-213-C050

Manufacturer:Mencom

Category:Electronic Components

Product Lifecycle:Active

Product description

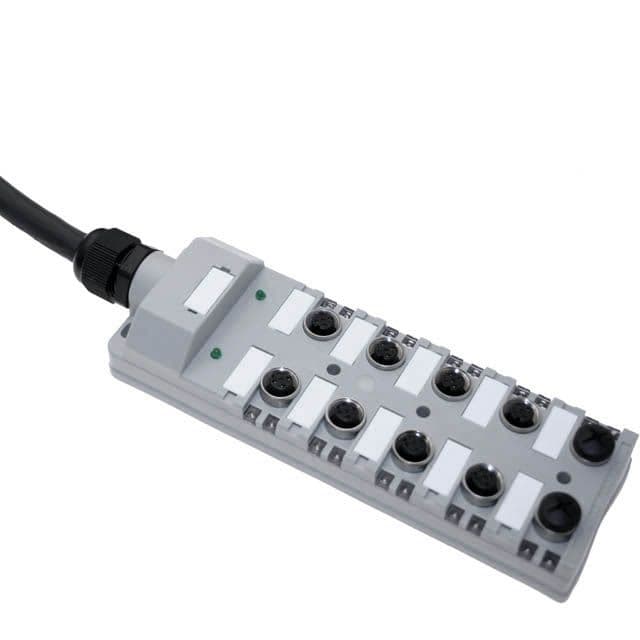

JDC Junction Blocks, 4 Pin, 10 Port, PNP, 5 Meters of Home Run Cable

Product Details

Home Run Pin Count
14
Product Type
Junction Blocks
Cable O.D.
0.388
Port Thread Gender
Female
Voltage Rating
48
Circuit
PNP
Cable Jacket Material
PUR
Wire Gauge
22
Mencom Series
JDC
IP Rating
IP67
Home Run Connector
Cable
Cable Length in feet
15
Port Coupling
M12
Cable Length in meters
5
Weight (lbs.)
2.567000
Pin Count
4
Amperage Rating
8
Jacket Color
Black
Number of Ports
10 Port
Color Code
DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of JDC-04P-213-C050 on Advantage Electric Supply is $265.95. Order now.

JDC-04P-213-C050 Related Documents

JDC-04P-213-CZZ.DWG-1631088071384.dwg JDC-04P-213-CZZ.PDF-1631088071376.pdf JDC-04P-213-CZZ.DXF-1631088071380.dxf

Manufacturer warranty

JDC-04P-213-C050 Mencom

$265.95

Your price can be lower.
Log in or Create account to check your discount

Backordered – place your order now, and we’ll take care of the rest

Select Qty:

$265.95

$265.95 each

Your order is guaranteed – we’ll keep you updated on delivery timelines

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us
