A072B2D0R0-32R Mersen Fuses
Product Details
- Terminal Type Bolted
- Weight 26 lb
- Voltage 7200 VAC
- UL Certification YES
- Trip Class R-Rated
- Country Of Origin MX
- Fuse Class Medium Voltage IEEE Fuses
- Mounting Bolted
- Connection/Terminal Type Bolted
- Product Length 21.5 in
- Connection/Terminal Material Silver-Plated Copper
- Body/Insulating Material GMG
- Indication System Yes
- Sell Pack Weight 27.3 lb
- Speed/Characteristic R-Rated
- ROHS Compliant Yes
- Sell Pack Width 13.5 in
- Rated voltage AC UL 7200 V
- Sell Pack Quantity 1 Each
- Sell Pack Length 25.19 in
- Indication System Type Visual Indicator
- Product Weight 26 lb
- Frequency 50/60 Hz
- Product Width 3 in
- Sell Pack Height 4.38 in
- AC Max I.R./Breaking Capacity: I1 65 kA
- Product Height 7.63 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of A072B2D0R0-32R on Advantage Electric Supply is $15,509.56. Order now.
About the product
A072B2D0R0-32R Mersen - Back-Up R-Rated Medium Voltage Fuse 7200VAC 32R Mounting: Bolted Style: D0R0 Visual Indicator Amp-Trap®

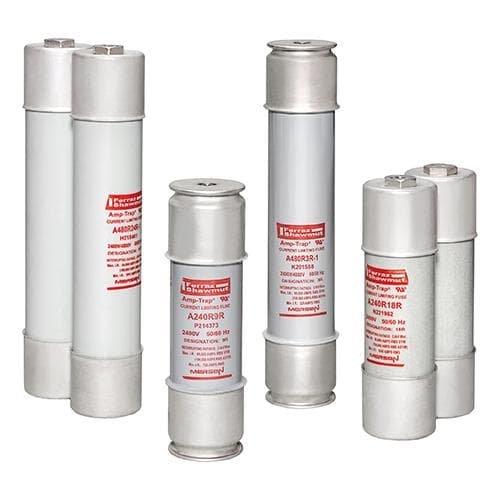

Mersen R-Rated fuses are current-limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers. R-Rated fuses are back-up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters. The motor starter manufacturer generally specifies the R-Rated fuse size. These fuses are single, double, triple or quadruple barrels 3 inches diameter with end mounts designed for bolting directly to equipment bus or terminal pads
*The Amp-Trap Bolt-in series are UL Recognized
*Bolt-in mounting for direct connection to bus or terminals
*Current-limiting for superior equipment protection
*Metal embossed catalog number and manufacturing date for lasting identification
*Blown-fuse indicator to give positive identification of open fuse
*Amp-Trap: 3" Barrel 2 lb tripped force - 0.50 Inch
*Short circuit protection of medium voltage motors and motor controllers
