A072D1DSR0-5R Mersen Fuses
Product Details
- Terminal Type Clip
- Weight 12.5 lb
- Voltage 7200 VAC
- UL Certification YES
- Trip Class R-Rated
- Country Of Origin MX
- Fuse Class Medium Voltage IEEE Fuses
- Speed/Characteristic R-Rated
- Product Diameter 2.88 in
- Sell Pack Height 4 in
- AC Max I.R./Breaking Capacity: I1 100 kA
- Product Weight 12.5 lb
- Sell Pack Length 23.75 in
- Rated voltage AC UL 7200 V
- Indication System Yes
- Sell Pack Width 4 in
- Connection/Terminal Type Clip
- Indication System Type Visual Indicator
- Sell Pack Quantity 1 Each
- Connection/Terminal Material Silver-Plated Brass
- Body/Insulating Material GMG
- Product Length 20 in
- Mounting Clip
- ROHS Compliant Yes
- Sell Pack Weight 13.13 lb
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of A072D1DSR0-5R on Advantage Electric Supply is $4,204.24. Order now.
About the product

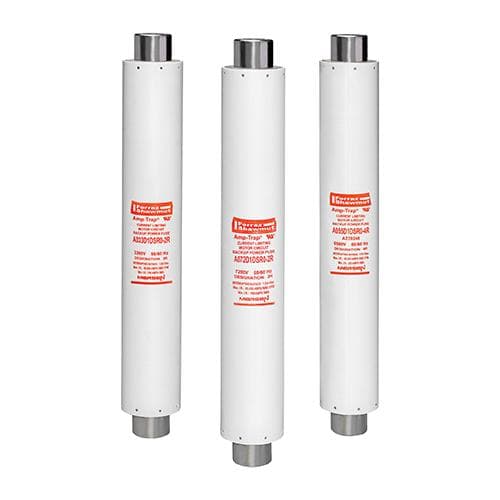

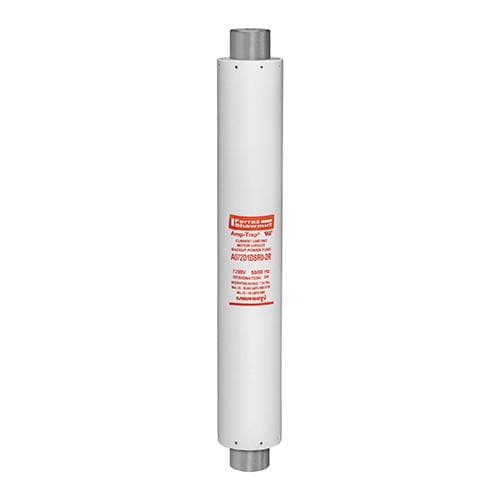

A072D1DSR0-5R Mersen - Back-Up R-Rated Medium Voltage Fuse 7.2 kV DIN Mount Motor 5R Visual Indicator
Amp-Trap® R-Rated DIN style fuses are current-limiting, high interrupting rating fuses, intended for the short circuit protection of medium voltage motors and motor controllers. This product range offers North American R-Rated performance in the IEC 282-1 DIN mounting configuration of 442mm. R-Rated fuses are applied as back up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters. Amp-Trap R-Rated, DIN type fuses are offered in voltage ratings of 3.3kV, 5.3kV and 7.2kV in ratings from 2R to 19R. All fuses within this product group are UL component recognized.
DEFINITIONS:
*R-Rating: R-Rated fuses are back-up fuses that operate as follows (Per ANSI C37.46-2000): An R-Rated fuse will melt in the range of 15 to 35 seconds at a value of current equal to 100 times the “R” rating
*Back-up Current-Limiting Fuses: A back-up current-limiting fuse is a fuse that can interrupt any current between its rated minimum interrupting current and its maximum interrupting current. Back-up fuses are not designed or intended to open under overload conditions
*Continuous Ampere Rating at 40°C: The continuous amp rating defines the thermal capability of the fuse per ANSI C37.46 and should not be the sole factor in fuse selection
*Spring-Reinforced Clip MR45 & Spring Ref.# L096472
*Fuse-Holder: SI 24/442 Ref # K209424 In compliance with IEC 282-1, DIN standard 43625
*Note: Ratings above 19R may be achieved by paralleling fuses. Please consult factory for details
*Clip mount DIN 45: R-Rated fuses with North American ANSI characteristics in a standard DIN 442mm size
*Current-limiting for superior equipment protection
*Blown fuse indicator provides positive identification of open fuse. 4.5lb tripping force - 1.0”
*Short circuit protection of medium voltage motors and motor controllers
