A320275 Mersen Fuses
Product Details
- Current Rating 250 A
- Terminal Type Plain Blades
- Weight 270.13 g
- UL Certification YES
- Trip Class High Speed
- Country Of Origin TN
- Fuse Class Semiconductor
- Ampere Rating 250 A
- Melting I2t 5580 A²s
- Product Length 4.92 in
- Sell Pack Length 5.04 in
- Rated voltage AC IEC 690 V
- Clearing I2t At Rated Voltage 29900 A²s
- Connection/Terminal Type Plain Blades
- Body/Insulating Material Ceramic
- Mounting Clip
- Speed/Characteristic aR
- Indication System Type Double Indicator
- Product Height 2.4 in
- Sell Pack Width 3.62 in
- Fuse Size NH0
- Indication System Yes
- Product Width 1.18 in
- Sell Pack Height 2.44 in
- Catalogue No. NH0UD69V250PV
- AC Max I.R./Breaking Capacity: I1 170 kA
- Product Weight 0.595 lb
- Sell Pack Weight 1.786 lb
- Rated voltage AC UL 700 V
- Power Dissipation at Rated Current Value 66.7 W
- Sell Pack Quantity 3 EACH
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of A320275 on Advantage Electric Supply is $661.14. Order now.
About the product

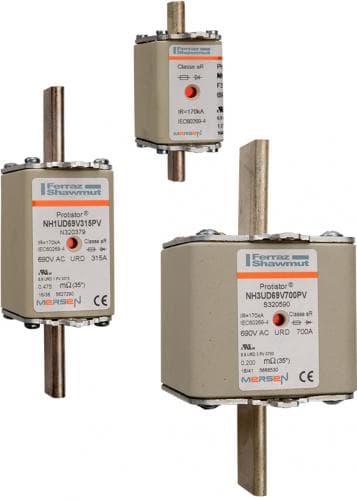

A320275 Mersen - Square Body High-Speed Fuse Protistor® NH Size 0 aR 690VAC IEC 700VAC UL 250A With Double indicator Plain Blades
Product type: Semiconductor Protection Fuses
The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These NH style fuse-links are defined as per DIN 43620/00 for a worldwide acceptance into NH modular system fuse-holders, fuse switch disconnectors for direct installation.
The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, GTO's and IGBT devices. Fuses are assembled with pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*Multiple body sizes
*aR Class according to VDE 636-23 and IEC 60269-4
*Very low I²t for improved semiconductor protection
*Ultra fast acting
*Current limiting
*Superior cycling capability
*Indication system with double indicator
