A430C20-75 Mersen Fuses
Product Details
- Current Rating 20 A
- Terminal Type Female Stud To Female Tube
- Weight 2.5 lb
- Voltage 4300 VAC
- Country Of Origin MX
- Fuse Class Medium Voltage IEEE Fuses
- Rated voltage AC UL 4300 V
- Connection/Terminal Material Tin-Plated Brass
- Sell Pack Length 2.62 in
- Indication System Yes
- Connection/Terminal Type Female Stud To Female Tube
- Indication System Type Visual Indicator
- Product Weight 2.5 lb
- Sell Pack Weight 2.63 lb
- Ampere Rating 20 A
- Product Length 9.75 in
- ROHS Compliant Yes
- Sell Pack Quantity 1 Each
- Sell Pack Width 2.62 in
- Mounting Direct Mount
- Product Diameter 2 in
- AC Max I.R./Breaking Capacity: I1 65 kA
- Body/Insulating Material GMG
- Sell Pack Height 10.81 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of A430C20-75 on Advantage Electric Supply is $880.79. Order now.
About the product

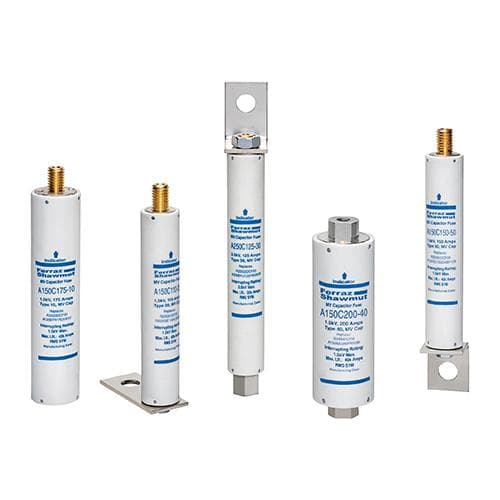

A430C20-75 Mersen - Medium Voltage Capacitor Fuse 4300VAC 20A Female Stud To Female Tube Visual Indicator Amp-Trap®
Mersen capacitor fuses are designed to ANSI C37-41. They are currentlimiting operating without noise or discharge and are designed to be used indoors in a general purpose enclosure or outdoors in a weatherproof enclosure. These are non-disconnecting fuses requiring the use of a disconnect switch. These capacitor fuses provide both short circuit and overload protection and are intended to protect against capacitor case rupture or dielectric failure within the capacitor.
The various mounting configurations offer manufacturers a wide range of cost/space saving solutions and a large choice of equivalent products
*High interrupting capacity
*Current limitation
*Blown-fuse indication
*Direct mount
*Clip style mount
*Bus mount
*Non-venting for silent operation
*Capacitor Protection
*Power Factor Correction Equipment
*Harmonic Filtering Equipment
*Induction Heating System
*High Power Drive
*Welders
