B214154 Mersen Fuse Holders
Part#:B214154
Alt. Part#:8430399003023
Manufacturer:Mersen
Category:Fuse Holders
Product Lifecycle:Active
Product description
B214154 Mersen - NH plastic base Size NH3 1000VAC 1000VDC 630A 2-Pole DIN Rail Connection Screw PP Type
Product Details
- Number of Poles 2 Pole
- Current Rating 630 A
- Weight 1551.318 g
- ROHS Compliant Yes
- Product Width 5.57 in
- Fuse Size NH3
- Product Height 9.49 in
- Design Details Type PP (clip contacts)
- Power Acceptance 60 W
- Torque Rating 283.22 lb-in
- Rated voltage DC IEC 440 V
- Sell Pack Width 10.24 in
- Number of Poles 2-Pole
- Product Length 4.06 in
- Sell Pack Quantity 2 EACH
- Rated voltage AC IEC 690 V
- Product Weight 3.417 lb
- Sell Pack Height 4.72 in
- Installation Mounting DIN Rail
- Sell Pack Weight 6.834 lb
- Catalogue No. BB32PPR
- Ampere Rating 630 A
- Sell Pack Length 11.81 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of B214154 on Advantage Electric Supply is $796.90. Order now.
About the product

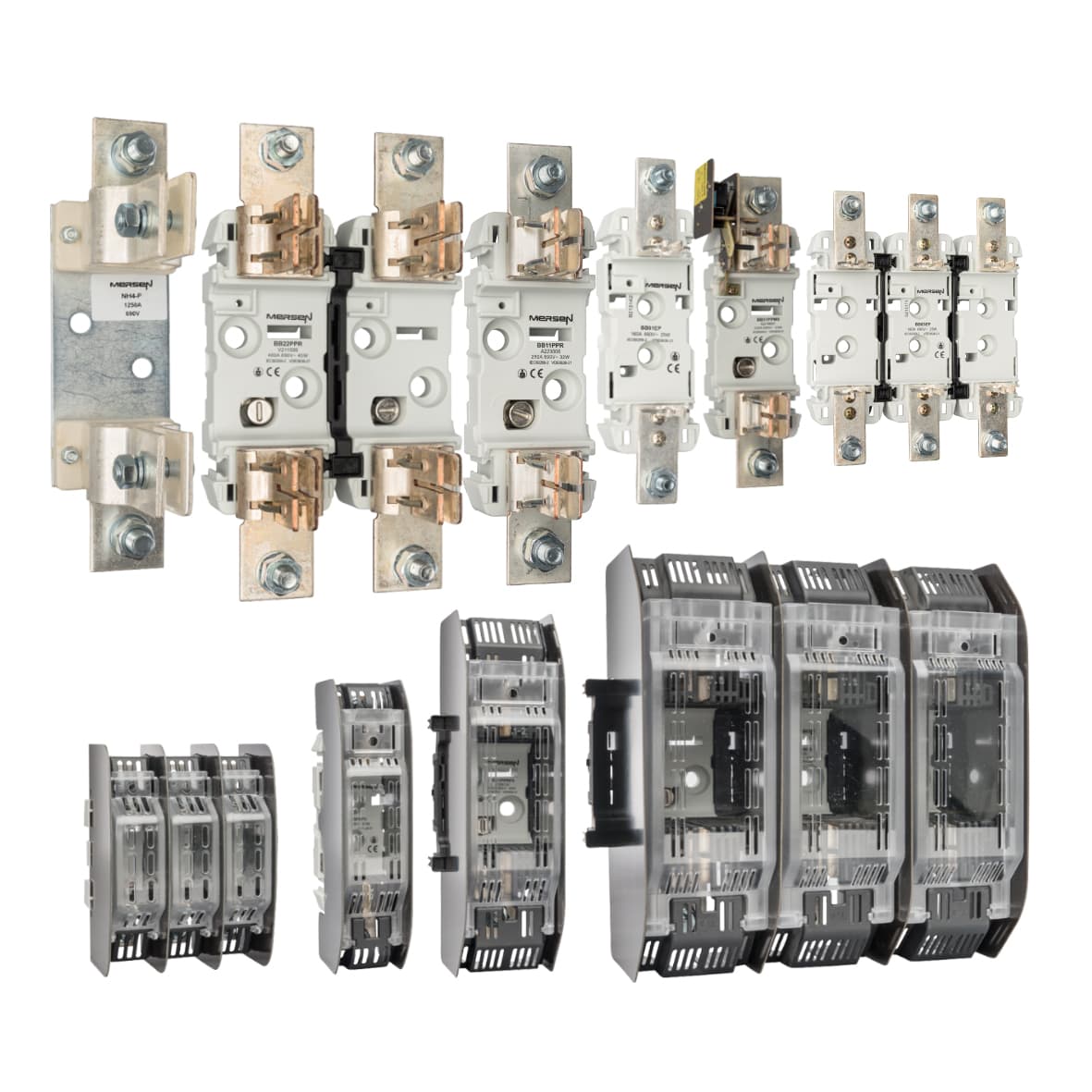

B214154 Mersen - NH plastic base Size NH3 1000VAC 1000VDC 630A 2-Pole DIN Rail Connection Screw PP Type | NH fuse-bases are available for delivery in single-pole and three-pole designs and can be closely mounted in parallel rows. Each three-pole base is upplied with two phase-partition walls. NH fuse-links plugon covers which clip onto the contact springs can also be supplied for these bases.
Plastic fuse-bases sizes 00 to 3 have a single-part plastic base while size 4 has a metal baseplate with 2 ceramic bases.
The stable silver-plated contact springs are made of electrolytic copper and formed from one piece. Separate springing is provided by highly resilient captive steel springs, making the contact invulnerable to high thermal stress. Size 4 NH fuse-bases are designed for size 4 fuse-links with 8 mm contact blades.
A microswitch (250VAC/10A, terminal size 6.3x0.8mm) can be used with NH fuse-links with striker, it operates when fuse melts or where there is no fuse-link.
Indirect touch protection fuse bases: no microswitch possible.
Rated impulse withstand voltage Uimp: 6kV / 8kV (sizes 00 / 0-4) | Features: *Polyamide insulating bases
*Silver-plated contacts
*High-pressure spring contacts
*Screw or rail mounting
*Connecting cable: 50mm
*Multipolar bases possible by direct linkage in 00 size and with separator accessory in sizes 0, 1, 2 and 3
*Variety of options for protecting active parts through use of accessories: separating plates, separator, cover shields and fuse cover
*Dual cable-connection system on 00 size: by screw or clamp | Application: *For fuse-links with rated voltages up to 1000VAC and 1000VDC
