C1008552 Mersen Fuses
Product Details
- Current Rating 100 A
- Terminal Type Cylindrical
- Weight 14.771 lb
- Voltage 24 kV AC
- Country Of Origin FR,HU
- Fuse Class High Voltage IEC Fuses
- AC Max I.R./Breaking Capacity: I1 32 kA
- Min Interrupting Rating (MBC) 450 A
- Power Dissipation at Rated Current Value 234 W
- Fuse Size d=88mm, L=537mm
- Product Diameter 3.46 in
- Catalogue No. 45DB240V100P-4
- Indication System Type Striker
- Product Weight 14.771 lb
- Connection/Terminal Type Cylindrical
- Clearing I2t At Rated Voltage 220 kA²s
- Mounting Clip
- Sell Pack Quantity 1 EACH
- Sell Pack Height 3.94 in
- Rated voltage AC IEC 24 kV
- Product Length 23.74 in
- Sell Pack Width 3.74 in
- Ampere Rating 100 A
- Body/Insulating Material Ceramic
- Sell Pack Length 25.2 in
- Indication System Yes
- Connection/Terminal Material Silver-Plated Copper
- Sell Pack Weight 14.771 lb
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
About the product

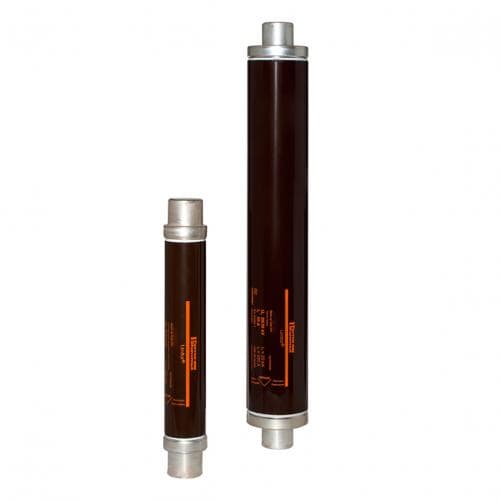

C1008552 Mersen - High Voltage DIN Back-up fuse for Transformer Limitor® VDE T4 24kVAC IEC 100A d88mm, L537mm With Striker Standard 80N
Mersen HV fuse-links have been used for reliable protection in high-voltage switchgear and controlgear and high-voltage systems for decades.
Limitor®-P HV fuses are back-up fuses as defined in the IEC 60282-1 standard and dedicated to protect transformers against effects of short-circuit currents.
To guarantee high quality, Mersen uses the best materials: fuse-elements are in pure silver, caps are in copper coated with silver and bodies are in ceramic.
High breaking capacity
*High current limitation
*Low switching voltage
*Quick breaking
*Medium striker 80N/30mm
*Indoor and outdoor applications
*Energy efficency
*New cap design for a better compatibility with all types of clips and easier assembly
*Coordination with IEC 60787, IEC 62271-105, IEC/TR 62655
HV Transformer protection
