G300018 Mersen Fuses
Product Details
- Current Rating 700 A
- Terminal Type DIN Type Blades
- Weight 386.808 g
- Trip Class High Speed
- Country Of Origin FR
- Fuse Class Semiconductor
- Clearing I2t At Rated Voltage 540000 A²s
- Indication System Yes
- Fuse Size 31
- Connection/Terminal Material Silver-Plated Copper
- Indication System Type Striker
- Sell Pack Height 2.52 in
- Rated voltage AC IEC 690 V
- Power Dissipation at Rated Current Value 95 W
- Product Width 2.01 in
- Sell Pack Width 5.63 in
- Catalogue No. PC31UD69V700A
- Sell Pack Weight 2.557 lb
- Speed/Characteristic aR
- AC Max I.R./Breaking Capacity: I1 200 kA
- Product Height 2.22 in
- Sell Pack Length 6.57 in
- Mounting Bolted
- Melting I2t 95000 A²s
- Product Weight 0.852 lb
- Sell Pack Quantity 3 EACH
- Ampere Rating 700 A
- Body/Insulating Material Ceramic
- Rated voltage AC UL 700 V
- Connection/Terminal Type DIN Type Blades
- Product Length 4.33 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of G300018 on Advantage Electric Supply is $903.53. Order now.
About the product

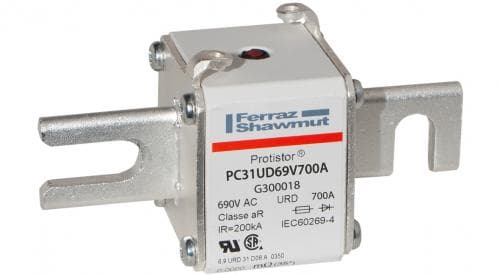

G300018 Mersen - Square Body High-Speed Fuse Protistor® Size 31 aR 690VAC IEC 700VAC UL 700A With Striker DIN 80 Blades
Product type: Semiconductor Protection Fuses
The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.
They have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*Multiple body sizes and terminals or blades combination
*aR Class according to IEC 60269-4 and VDE 636-23
*Very low I²t for improved semiconductor protection
*Ultra fast acting
*Current limiting
*Superior cycling capability
