G300110 Mersen Fuses
Product Details
- Current Rating 100 A
- Terminal Type DIN Type Blades
- Weight 273.308 g
- Trip Class High Speed
- Country Of Origin FR
- Fuse Class Semiconductor
- Indication System Yes
- Rated voltage AC UL 700 V
- Sell Pack Width 5.31 in
- Melting I2t 0.47 kA²s
- Catalogue No. PC30UD69V100A
- Product Weight 0.603 lb
- Sell Pack Length 5.71 in
- AC Max I.R./Breaking Capacity: I1 200 kA
- Body/Insulating Material Ceramic
- Sell Pack Weight 1.808 lb
- Fuse Size 30
- Connection/Terminal Type DIN Type Blades
- Product Height 1.89 in
- Clearing I2t At Rated Voltage 2.7 kA²s
- Power Dissipation at Rated Current Value 26 W
- Product Length 4.33 in
- Ampere Rating 100 A
- Connection/Terminal Material Silver-Plated Copper
- Product Width 1.57 in
- Sell Pack Height 2.17 in
- Mounting Bolted
- Speed/Characteristic aR
- Rated voltage AC IEC 690 V
- Indication System Type Striker
- Sell Pack Quantity 3 EACH
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of G300110 on Advantage Electric Supply is $647.03. Order now.
About the product

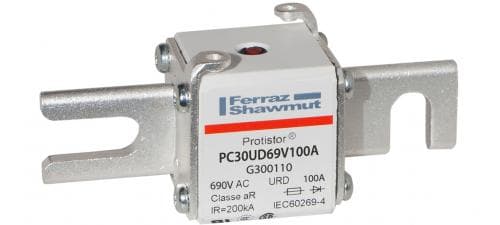

G300110 Mersen - Square Body High-Speed Fuse Protistor® Size 30 aR 690VAC IEC 700VAC UL 100A With Striker DIN 80 Blades
Product type: Semiconductor Protection Fuses
The 690/700V Protistor® fuse-links range provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.
They have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, IGBT and MOSFET devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*Multiple body sizes and terminals or blades combination
*aR Class according to IEC 60269-4 and VDE 636-23
*Very low I²t for improved semiconductor protection
*Ultra fast acting
*Current limiting
*Superior cycling capability
