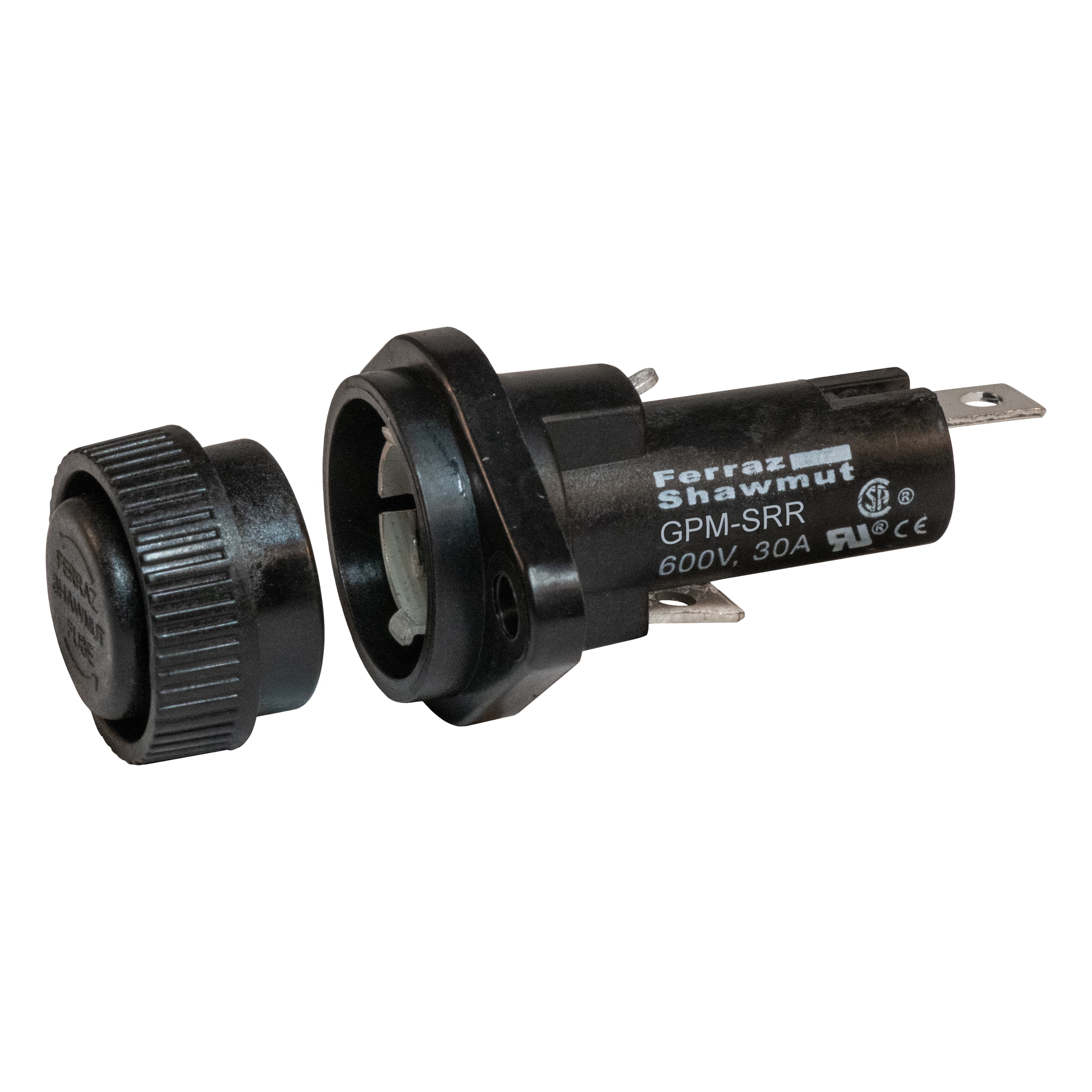

GPM-SRR90 Mersen Fuse Holders
Part#:GPM-SRR90
Alt. Part#:782001323912
Manufacturer:Mersen
Category:Fuse Holders
Product Lifecycle:Active
Product description
GPM-SRR90 Mersen - Fuse Block 600VAC 600VDC Class CC 30A 1/4in Quick Connect / Solder 90 angle screw Knob Panel Mount
Product Details
- Number of Poles 1 Pole
- Current Rating 30 A
- Weight 29.51 g
- Voltage 600 VAC
- Short Circuit Current Rating (SCCR) 100
- Product Width 1.13 in
- Sell Pack Length 4.63 in
- Rated voltage DC UL 600 V
- Rated voltage AC UL 600 V
- Sell Pack Height 7 in
- ROHS Compliant Yes
- Installation Mounting Panel Mount
- Body/Insulating Material Thermoplastic
- Max Fuse Rating 30 A
- Fuse Type/Class Class CC
- Product Length 2.11 in
- Product Height 1.13 in
- Number of Poles 1-pole
- Product Weight 0.065 lb
- Sell Pack Width 2.13 in
- Fuse Installation Method Clip-in
- Sell Pack Quantity 10 Each
- Ampere Rating 30 A
- Sell Pack Weight 0.68 lb
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of GPM-SRR90 on Advantage Electric Supply is $72.94. Order now.
About the product
GPM-SRR90 Mersen - Fuse Block 600VAC 600VDC Class CC 30A 1/4in Quick Connect / Solder 90 angle screw Knob Panel Mount | Mersen GPM Panel Mount Fuse Holders are in sizes to accommodate 5x20 mm, 1/4"x1-1/4", Class CC and Midget (1-1/2"x13/32") fuses. All 30A holders have glass-filled polyester insulators for extra dependability and trouble-free installation. Patented design allows same body to accept screw or bayonet knob. Flange design allows front or rear mounting. The 10A and 15A holders are for front mounting only. | Features: *Patented design allows same body to accept screw or bayonet knob
*Flange design allows front or rear mounting. | Application: *Panel Mount Fuse Holders
